Many buyers assume an extension pole can hold any tool as long as it fits the thread. That assumption often leads to bending poles, damaged locking systems, or unsafe operation at height.
The real issue is that extension pole strength drops significantly when the pole is fully extended. A pole that feels solid at 2 meters may struggle to support the same load at 6 meters.
Understanding extension pole load capacity helps buyers select the correct pole for cleaning, painting, pool maintenance, or industrial use. This guide explains how load capacity works, what determines pole strength, and how to choose the right telescopic pole for your application.
What Extension Pole Load Capacity Means
Extension pole load capacity refers to the maximum weight a pole can safely support while extended during normal use.
Manufacturers typically define two different limits.
| Term | Meaning |
|---|---|
| Maximum Load | Structural limit before bending or failure |
| Safe Working Load | Recommended operating weight for safe use |
In most cases:
Safe working load = 30–50% of maximum structural load
For example:
| Pole Type | Typical Maximum Load | Recommended Working Load |
|---|---|---|
| Light duty pole | 3–4 kg | 1–1.5 kg |
| Medium duty pole | 6–8 kg | 2–3 kg |
| Heavy duty telescopic pole | 10–12 kg | 4–5 kg |
Another critical factor is pole length.
The longer the pole extends, the more leverage the load creates at the base section. This is why manufacturers often provide load ratings based on fully extended length.
Key Factors That Determine Extension Pole Strength
Several engineering factors determine how much weight a telescopic pole can safely hold.

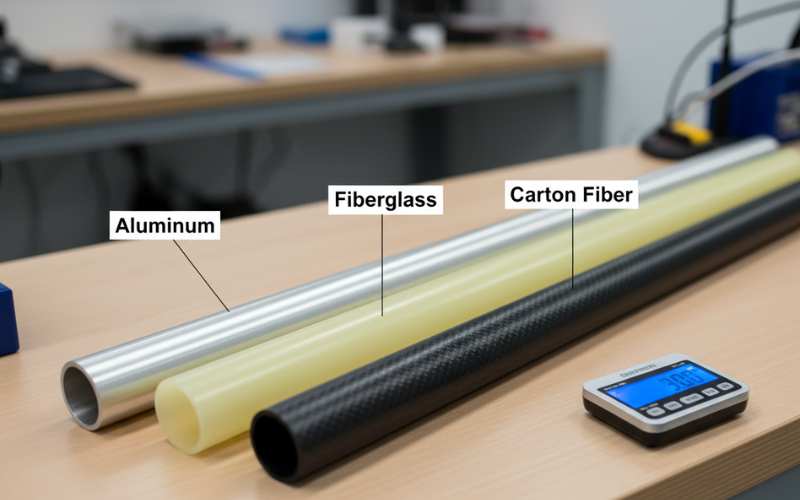

Material Type
Material choice has a direct impact on stiffness, weight, and durability.
| Material | Characteristics | Typical Applications |
|---|---|---|
| Aluminum | Lightweight, corrosion resistant | Cleaning poles, painting poles |
| Fiberglass | Electrically insulated | Electrical maintenance |
| Carbon fiber | Very stiff and lightweight | Professional window cleaning |
According to material property data from the ASM Materials Database
https://asm.matweb.com
- Aluminum alloys offer a good balance of strength and weight.
- Fiberglass provides insulation but tends to be heavier.
- Carbon fiber delivers the highest stiffness but is more expensive.
For most commercial extension poles, aluminum remains the most widely used material because it combines durability with manageable cost.

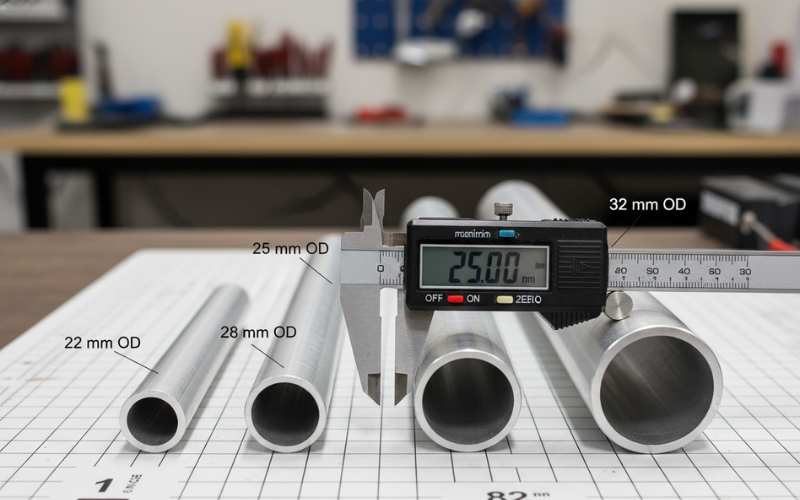

Tube Diameter
Tube diameter is one of the most important structural factors.
A larger diameter tube resists bending better because it increases the pole’s moment of inertia, which improves stiffness.
Common extension pole diameters include:
| Outer Tube Diameter | Typical Use |
|---|---|
| 22 mm | light cleaning poles |
| 25 mm | household extension poles |
| 28 mm | professional cleaning poles |
| 32 mm | heavy duty telescopic poles |
| 35 mm+ | industrial long-reach poles |
As a general rule:
Increasing diameter improves load capacity more effectively than increasing wall thickness alone.

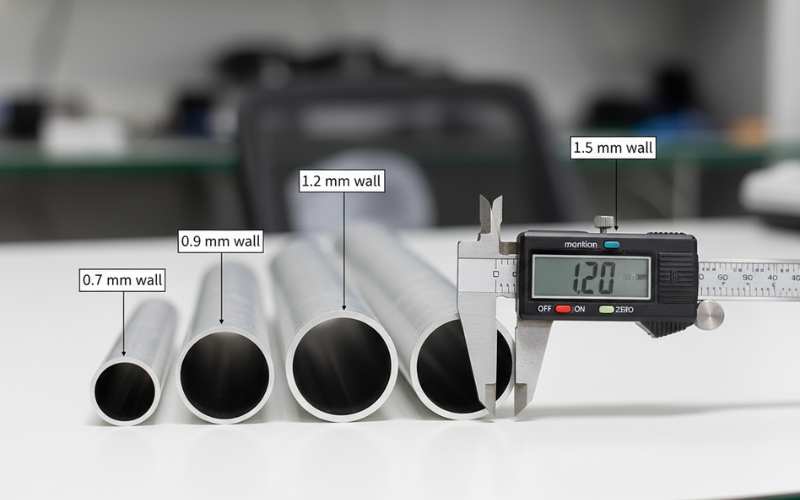

Wall Thickness
Wall thickness determines how resistant the pole is to deformation under load.
Typical aluminum telescopic pole wall thickness:
| Wall Thickness | Typical Application |
|---|---|
| 0.7 mm | light household poles |
| 0.9 mm | medium cleaning poles |
| 1.2 mm | professional telescopic poles |
| 1.5 mm+ | industrial heavy-duty poles |
Thicker walls increase stiffness but also increase pole weight.
Manufacturers therefore balance strength, weight, and handling comfort.

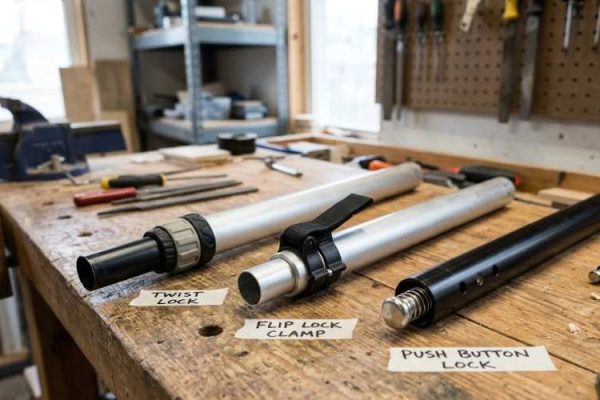

Locking Mechanism
The locking system also affects load stability.
Common locking systems include:
Twist Lock
- Internal expansion mechanism
- Smooth exterior
- Widely used in cleaning poles
Pros:
- Simple design
- Lower cost
Cons:
- Can loosen under vibration
Flip Lock
- External clamp design
- Strong compression locking
Pros:
- Higher load stability
- Quick adjustments
Cons:
- Slightly heavier
Push Button Lock
- Mechanical pin locking
- Often used in segmented poles
Pros:
- Reliable mechanical stop
- Durable
Cons:
- Less flexible length adjustment
For long extension poles above 6 meters, many manufacturers prefer flip locks because they provide stronger clamping force.

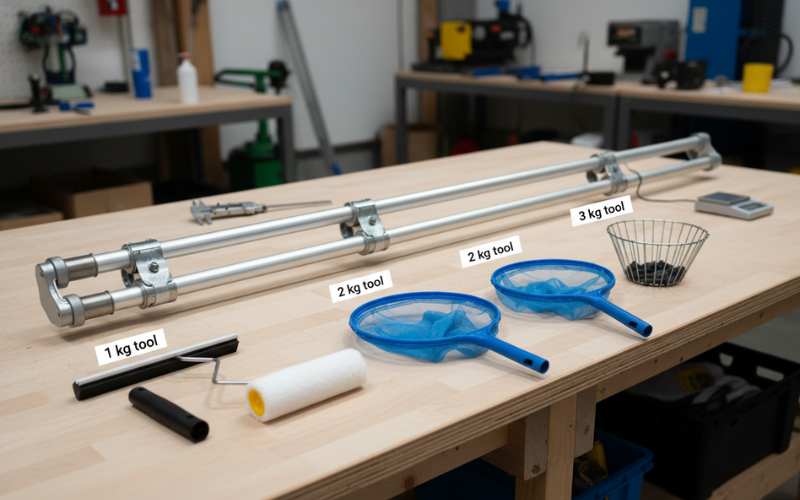

Typical Extension Pole Load Capacity by Size
The following table provides typical load capacity ranges based on common pole designs.
| Pole Diameter | Wall Thickness | Material | Typical Load Capacity |
|---|---|---|---|
| 22 mm | 0.7 mm | Aluminum | 1–2 kg |
| 25 mm | 0.9 mm | Aluminum | 2–3 kg |
| 28 mm | 1.0 mm | Aluminum | 3–4 kg |
| 32 mm | 1.2 mm | Aluminum | 4–5 kg |
| 35 mm | 1.5 mm | Aluminum | 6–8 kg |
These values assume fully extended poles between 3–6 meters.
Longer poles will typically have lower recommended working loads.

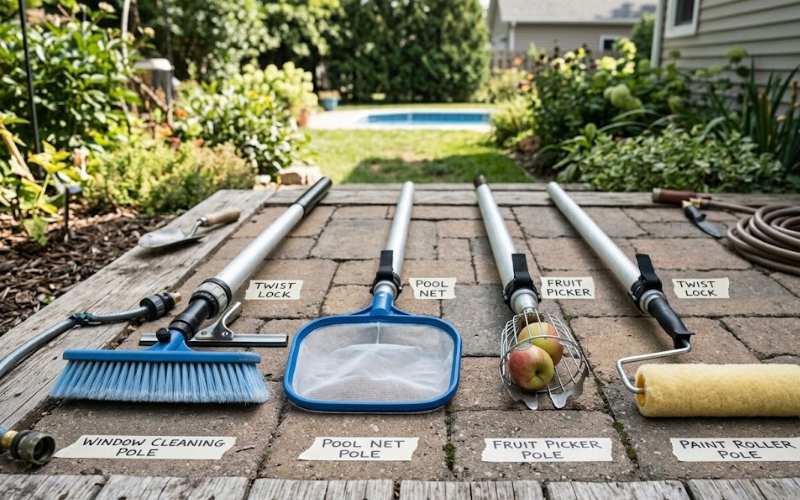

Load Capacity by Application
Different industries require different pole strength levels.
Window Cleaning Pole
Typical tool weight:
- squeegee
- scrubber
- water-fed brush
Weight range:
0.5–1.5 kg
Recommended pole type:
- aluminum telescopic pole
- carbon fiber pole for heights above 8 meters
Painting Extension Pole
Painting tools include:
- paint rollers
- spray attachments
Typical load:
1–2 kg
Recommended pole design:
- 25–28 mm aluminum pole
- reinforced locking mechanism
Pool Cleaning Pole
Pool maintenance tools often include:
- vacuum head
- leaf net
- pool brush
Weight range:
2–4 kg
Recommended design:
- 28–32 mm aluminum telescopic pole
- thicker wall tubes
Fruit Picking Pole
Fruit picking tools may include:
- picking basket
- cutting blade
Typical load:
2–3 kg
Long poles require good rigidity to avoid oscillation during harvesting.

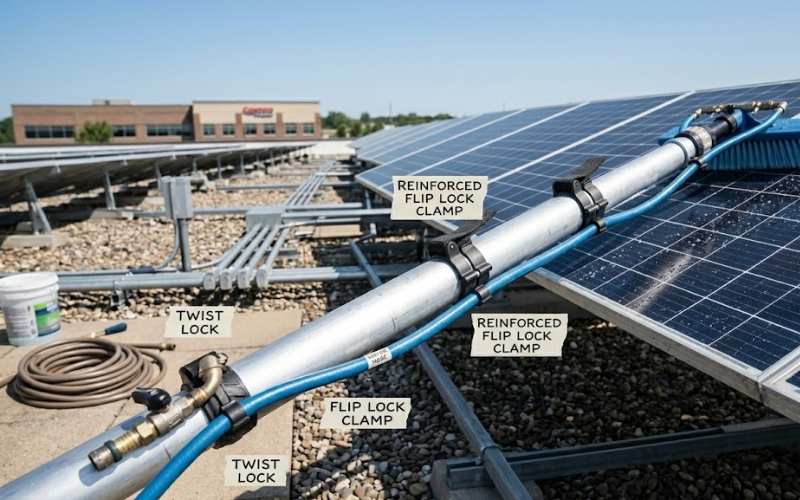

Solar Panel Cleaning Pole
Solar panel cleaning systems may include:
- water-fed brush
- hose system
Typical load:
2–5 kg
Because the pole length can exceed 8–10 meters, many systems use carbon fiber poles for improved stiffness.
Information about solar panel cleaning maintenance can be found from the
International Renewable Energy Agency
https://www.irena.org
Why Extension Poles Bend Under Load
Extension poles behave like cantilever beams.
This means the load at the tip creates leverage that multiplies stress at the base.
The longer the pole:
- the greater the bending moment
- the lower the effective load capacity
Engineering beam theory explains this relationship in structural mechanics.
More detail can be found in the engineering resource from MIT OpenCourseWare
https://ocw.mit.edu
In practical terms:
Doubling the pole length can increase bending stress several times.
This is why heavy tools should never be used with long lightweight poles.
How to Choose the Right Extension Pole for Heavy Tools
Buyers should evaluate several factors before selecting an extension pole.
Key checklist:
- required working height
- tool weight
- pole material
- tube diameter
- wall thickness
- locking mechanism
- adapter compatibility
For industrial buyers and OEM brands, additional considerations include:
| Factor | Why It Matters |
|---|---|
| MOQ | affects inventory cost |
| Lead time | important for seasonal demand |
| Surface finishing | anodizing improves corrosion resistance |
| Custom diameter | improves product differentiation |
Manufacturers with integrated extrusion and machining capability can provide more flexible customization options.
For example, Xingyong has produced aluminum extrusion products since 2002 and operates 14 extrusion machines and automated anodizing lines, enabling custom telescopic pole production and finishing processes. :contentReference[oaicite:0]{index=0}
Common Load Capacity Mistakes Buyers Make
Even experienced buyers sometimes overlook important structural factors.
Common mistakes include:
Ignoring Fully Extended Length
Load capacity always decreases as the pole extends.
A pole rated for 4 kg at 3 meters may only support 2 kg at 6 meters.
Choosing Thin Wall Tubes
Low-cost poles often reduce wall thickness.
This can cause:
- pole bending
- lock failure
- shorter product lifespan
Weak Locking Systems
Poor locking mechanisms can slip under load.
This often happens with:
- low-cost twist locks
- worn internal bushings
Using Heavy Tools with Light Poles
Tools such as:
- pressure washer attachments
- large pool vacuum heads
require stronger poles than standard cleaning tools.
When You Need a Heavy Duty Telescopic Pole
You should consider a heavy-duty pole if your application involves:
- tool weight above 3 kg
- pole length above 6 meters
- frequent commercial use
- industrial cleaning applications
Heavy-duty designs typically include:
- 32–35 mm outer tubes
- thicker wall aluminum
- reinforced locking systems
The Key Takeaway for Buyers
Extension pole load capacity depends on more than just the material.
The real strength comes from a combination of:
- tube diameter
- wall thickness
- locking mechanism
- pole length
When selecting a telescopic pole, always consider both tool weight and working height. A properly designed pole improves safety, durability, and user efficiency.
Working with an Experienced Aluminum Extension Pole Manufacturer
For brands, distributors, and OEM buyers, working with an experienced manufacturer can simplify pole development.
Key capabilities to look for include:
- aluminum extrusion production
- precision machining
- anodizing and surface finishing
- custom locking mechanism development
- OEM branding support
With more than two decades of manufacturing experience and a monthly aluminum extrusion capacity of 3,000 tons, Xingyong provides custom aluminum telescopic pole solutions for cleaning equipment brands, pool maintenance suppliers, and international retailers. :contentReference[oaicite:1]{index=1}
Discussing specifications such as tube diameter, wall thickness, and locking design early in the sourcing process can help ensure the final pole meets both performance and safety requirements.
FAQ
How much weight can an extension pole hold?
Most extension poles support 1–5 kg of safe working load, depending on diameter, wall thickness, and length.
Does pole length affect load capacity?
Yes. Longer poles reduce effective load capacity because leverage increases bending stress.
Are aluminum extension poles strong enough?
Yes. Aluminum poles provide a strong balance of light weight, durability, and corrosion resistance, which is why they are widely used in cleaning and maintenance industries.
What is the strongest type of telescopic pole?
Carbon fiber poles offer the highest stiffness-to-weight ratio, but aluminum poles remain the most common solution due to their lower cost and durability.
