60 Foot Extension Pole Manufacturer
The Xingyong 60 foot extension pole reaches 18.3 m through 6–12 nested sections — built for water-fed window cleaning at height, where a steady, sag-controlled pole and a strict tool-weight discipline matter more than raw length. Custom 0.8–1.2 mm walls and structural alloy keep deflection in check at full extension.
- ✓ 6005 / 6063 / 6065 aluminum — structural tempers for extreme reach
- ✓ 6–12 sections, 0.8–1.2 mm custom wall thickness
- ✓ Flip / twist / button lock — MOQ from 100 pcs

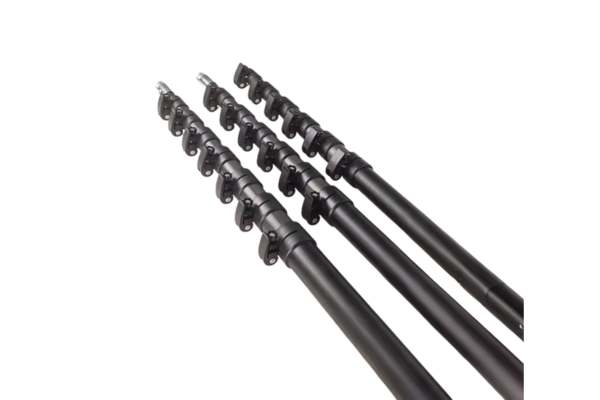

What Is a 60 Foot Extension Pole
A 60 foot extension pole is an extreme-reach aluminum pole that extends to roughly 18.3 m across 6–12 nested sections — tall enough to service the sixth or seventh floor of a building from the ground, or to reach across wide roof-mounted solar arrays without a lift. At this length the deciding factors are no longer raw reach but rigidity and a strict tool-weight limit: we tune the section count and custom 0.8–1.2 mm walls in structural 6005 / 6063 / 6065 alloy to control deflection, and we recommend keeping tool heads under ~1.5–2 kg at full extension. It is built for high-reach light-to-medium water-fed tools — brushes, squeegees and water-fed window cleaning at height — not for pressure heads, heavy scrubbers or anything that loads the tip hard.
The 60 ft class sits between two neighbours that behave very differently. A 50 ft pole is noticeably stiffer and can carry slightly heavier tools with less sag, so choose it when the extra 10 ft of reach is not strictly needed. A 100 ft pole reaches far higher but demands an even tighter tool-weight discipline and almost always needs a support pole or brace at the top of its travel. The 60 ft is the practical ceiling for a single operator working a water-fed pole unsupported, which is why it is the workhorse length for mid-rise window and facade work. Buyers often review 60 Foot Extension Pole together with telescopic pole manufacturer, extension pole manufacturer, custom aluminum telescopic poles, standard aluminum extrusion, and precision aluminum tube manufacturing so alloy, tolerance, surface finish, and assembly details stay aligned. The material notes can also be aligned with Aluminum Association material resources, ISO 9001 quality management, and ASTM B221 aluminum extrusion standard when engineering and purchasing teams confirm the final specification.
Types of 60 Foot Extension Pole
By Section Count (6 – 12)
Fewer sections (6) give stiffer joints but a longer collapsed length; 12 sections pack much shorter for freight. At 60 ft the section count is the main lever between rigidity and shipping size.
By Lock & Wall Thickness

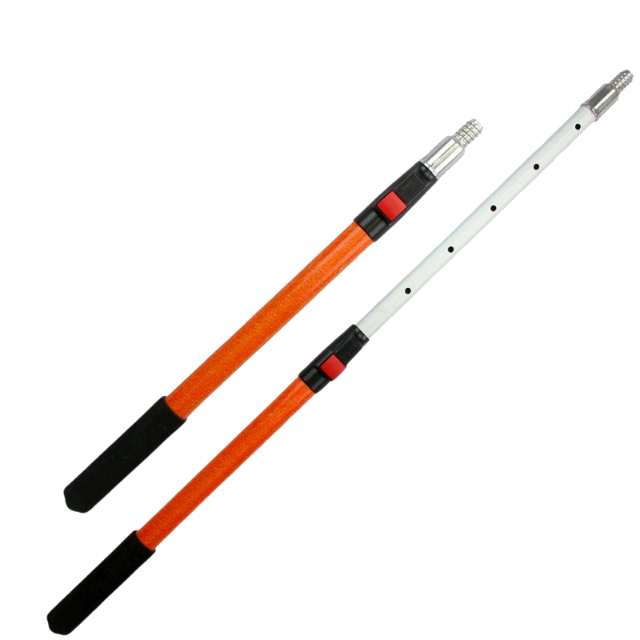

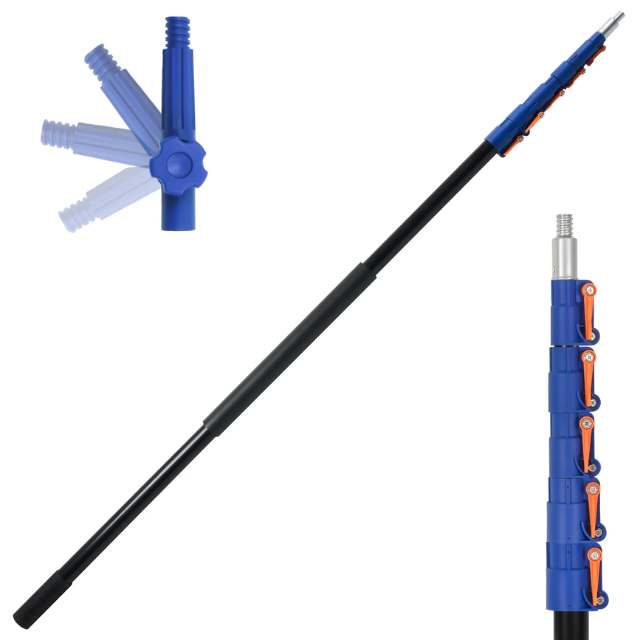

Flip locks resist slip under load best on long poles; thicker 1.2 mm walls add rigidity while 0.8 mm trims weight. Button and twist locks are also available for your workflow.
By Application
High-reach water-fed window cleaning, solar-panel washing and light-to-medium maintenance — jobs the 30–50 ft class can't reach.
60 Foot Extension Pole Applications by Industry
Every use below shares one constraint: the tool head must stay under ~1.5–2 kg at full 18.3 m extension. Within that limit the 60 ft pole replaces a lift, scaffold or cherry-picker on jobs the 30–50 ft class simply can't reach.
High-Rise Water-Fed Window Cleaning
Use: ground-level glass cleaning to the 6th–7th floor with a brush and purified-water feed. Why 60 ft: it clears the height where ladders and 50 ft poles stop without the cost or permits of a lift. Limit: a wet water-fed brush plus hose pull must stay under ~1.5–2 kg or sag makes the tip unsteady. See our window cleaning poles.
Solar-Panel Washing
Use: reaching across wide ground-mount and low-tilt rooftop arrays to clear dust and soiling. Why 60 ft: the horizontal span of a large array, not just height, needs a long pole worked at a low angle from one standing position. Limit: use a light soft-bristle solar brush only — keep the head under ~1.5–2 kg. See our solar-panel cleaning poles.
Light Facade Maintenance
Use: rinsing cladding, signage and soffits, knocking down cobwebs and applying light cleaning solution at height. Why 60 ft: it covers mid-rise frontage in a single pass without staging scaffold for a quick job. Limit: brushes and soft applicators only — no pressure heads or heavy scrubbers, and stay under ~1.5–2 kg.
Visual Inspection & Camera Work
Use: mounting a lightweight inspection camera or mirror to check gutters, roof edges, eaves and high fixtures. Why 60 ft: it gets a camera to the inspection point without a lift or drone permit. Limit: small cameras sit well under the ~1.5–2 kg ceiling, but mind that any sag still shifts the view at full reach.
Engineering & Sourcing Notes for the 60 ft Class
At 18.3 m a 60 ft pole behaves more like a slender cantilever than a handle, so the spec choices that matter are different from those on a 20–30 ft pole. These are the points we walk every OEM buyer through before tooling a batch.
Deflection & the Tool-Weight Rule
Tip deflection rises sharply with both length and tool weight — at 18.3 m it is the governing design factor. That is why the <1.5–2 kg tool-weight rule matters: a head twice as heavy doesn't double sag, it makes the pole genuinely hard to control and accelerates fatigue at the joints. Brief your real tool weight up front and we size walls and section count around it. See our load capacity & deflection guide.
Section Count vs Rigidity
Each joint is a small loss of stiffness, so a 6-section 60 ft pole is meaningfully more rigid than a 12-section one — but it also collapses much longer and ships harder. We help you land the count that holds your sag target while still fitting your carton and container. Thicker 1.2 mm walls buy back rigidity where a shorter collapsed length forces more sections.
Lock Choice for Long Poles
On a 60 ft pole the lock has to hold many sections against the leverage of full extension. External flip locks resist slip best under that load and re-tension easily in the field; twist locks are clean and low-profile; button locks suit fixed-position work. We recommend flip locks as the default for the extreme-reach classes and validate slip resistance per batch.
Packing, Freight & Per-Batch QC
Collapsed length drives carton size and therefore freight, so section count is as much a logistics decision as an engineering one. We optimise pcs/carton against your container and confirm collapsed length before tooling. Every batch is checked for alloy, wall thickness, deflection, lock slip and thread fit under ISO 9001 / IATF 16949 / BSCI. See our production lead-time guide.
Why Choose Xingyong for 60 Foot Extension Poles
In-House Production
14 extrusion lines, 12 anodizing lines and 22 machining lines — tube, finish and assembly under one roof since 2010.
Sag-Control Engineering
Step-down diameters, custom wall thickness and structural tempers are tuned specifically for the long-reach classes.
Custom OEM Options
Color anodizing, printed grips, water-fed thread tips and private-label branding for your 60 ft line.
Audit-Ready QC
Alloy, wall-thickness, deflection and thread-fit tests per batch under ISO 9001 / IATF 16949 / BSCI.
Frequently Asked Questions: 60 Foot Extension Pole
How much does a 60 ft pole deflect at 18 m, and what is the tool-weight limit?
Some sag is unavoidable at 18.3 m — physics, not a defect. We control it with step-down diameters, custom 0.8–1.2 mm walls and structural 6005 / 6063 / 6065 alloy. The single most important buyer rule is the tool-weight limit: keep heads under ~1.5–2 kg at full extension. Heavier tools multiply deflection and make the pole unsteady — run them on a shorter pole or at partial extension.
How many sections does the 60 ft pole have and how do they nest?
It uses 6–12 sections nesting from a wide base down to a narrow tip. Fewer sections (6) give stiffer joints; more sections (12) collapse much shorter for freight. We tune the count to balance rigidity against your packing and container limits.
What is the collapsed / shipping length of the 60 ft pole?
Collapsed length depends on the chosen section count — more sections pack shorter. We tune section count to balance rigidity against your carton and container limits. Tell us your packing target and we optimize pcs/carton.
What tools can a 60 ft pole carry?
High-reach light-to-medium water-fed tools — brushes, squeegees and water-fed window-cleaning heads, typically under ~1.5–2 kg at full extension. Heavier tools should use a shorter pole or be run at partial extension.
Exactly how heavy a tool can I run on a 60 ft pole?
Plan for under ~1.5–2 kg at the tip at full extension — and remember a water-fed brush gets heavier once it is wet and you are pulling hose. The closer you stay to the lower end of that range, the steadier the pole and the longer the joints last. If your tool is heavier, the right answer is a shorter pole or running this one at partial extension, not a stiffer 60 ft build — no aluminum pole defeats the leverage at 18.3 m. Tell us your exact wet tool weight and we size the walls and section count around it.
What is the MOQ and lead time for OEM 60 ft poles?
MOQ starts at 100 pcs and is flexible for established buyers. Lead time is 25–35 days after artwork & sample confirmation. See our sample & MOQ policy and lead-time guide.
What can be customized on a 60 ft OEM pole?
Section count (6–12), wall thickness (0.8–1.2 mm), alloy temper (6005 / 6063 / 6065), lock type (flip / twist / button) and collapsed length are all configurable. On the finishing side we offer color anodizing, printed or branded grips, water-fed thread tips and full private-label packaging. Brief your reach, tool weight and packing target and we build the spec around them.
What certifications and quality checks back the 60 ft pole?
We run under ISO 9001 / IATF 16949 / BSCI from our own factory — 14 extrusion, 12 anodizing and 22 machining lines in Jiangsu, China since 2010. Every batch is checked for alloy, wall thickness, deflection, lock-slip resistance and thread fit, so audit-ready records ship with your order.
Related High-Reach Lengths
Brief Your 60 Foot Extension Pole PO to a Real Factory
Send your reach, section count, tool weight and lock spec — we quote within 24 hours.
