V Slot Aluminum Solutions for Global Industry
Xingyong combines over 20 years of manufacturing expertise with advanced extrusion technology to deliver precision v slot aluminum systems. We support global OEM brands and retailers with scalable production and strict quality control.

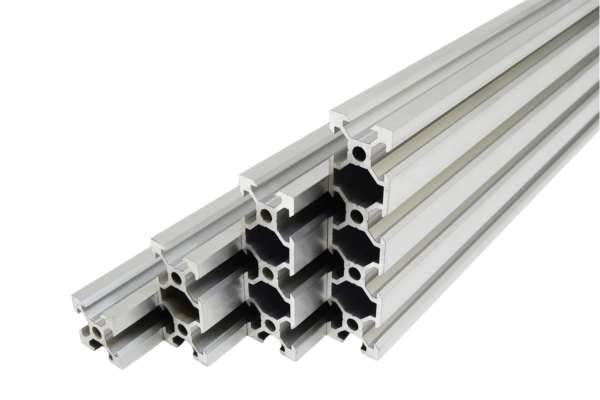

What is V Slot Aluminum
V Slot Aluminum, also known as a V-Slot linear rail, is a high-quality aluminum profile designed for smooth movement. Unlike standard framing, it features a unique “V” groove on all four sides. This allows wheels to roll directly on the rail, making it perfect for building CNC machines and 3D printers. At Xingyong, our V-slot aluminum extrusions are made from strong 6063-T5 alloy. They serve as precise, modular building blocks for both structural frames and linear motion systems.
| Attribute | Specification Details |
|---|---|
| Product Name | V Slot Aluminum / V-Slot Linear Rail |
| Material Grade | Aluminum Alloy 6063-T5 |

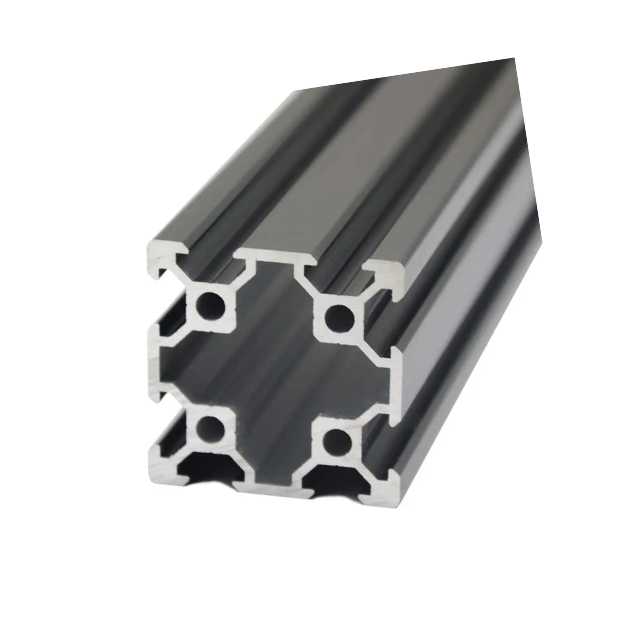

| Common Profile Sizes | 20×20, 20×40, 20×60, 20×80, 40×40, 40×80 (C-Beam) mm |
| Slot Geometry | Precision 90° V-Groove (compatible with standard V-Wheels) |
| Surface Treatment | Anodized (Silver / Clear, Black), Sandblasted, Powder Coated |
| Standard Length | 1000 mm, 1500 mm, 2000 mm, 3000 mm |
| Custom Length | Cut-to-length service available (up to 6 meters) |
| Dimensional Tolerance | ISO Standard / GB High Precision (typically ±0.3 mm to ±0.5 mm) |
| Hardness | ≥8 HW (Webster Hardness) |
| Deep Processing | Cutting, Drilling, Tapping, Milling, Laser Marking (Logo) |
| Certifications | ISO 9001:2015, ISO 14001:2015, IATF 16949:2016 |
| Application | 3D Printers, CNC Routers, Camera Sliders, Retail Slatwalls, Automation Frames |
Xingyong V Slot Aluminum Types
At Xingyong, we manufacture a comprehensive range of v slot aluminum profiles designed to meet global industry standards. Whether you are building precise 3D printers or heavy-duty automation workbenches, our aluminum extrusion profiles offer the perfect balance of lightweight design and structural rigidity. We provide factory-direct solutions with flexible length options (e.g., 400 mm, 1220 mm) and premium finishes like black or silver anodizing. Browse our series below to find the exact components for your linear motion systems.
Standard 20 Series V-Slot Linear Rails

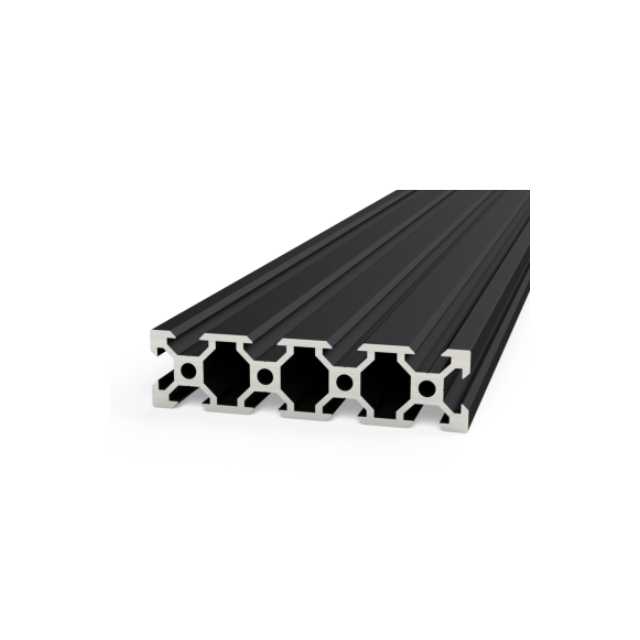

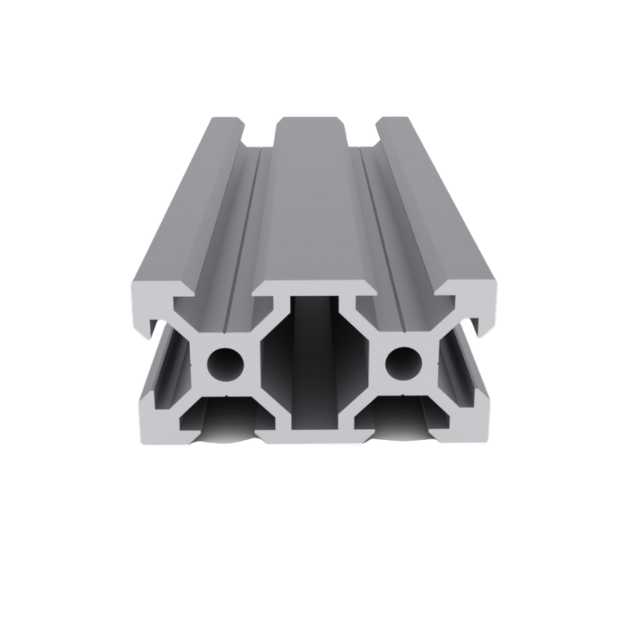

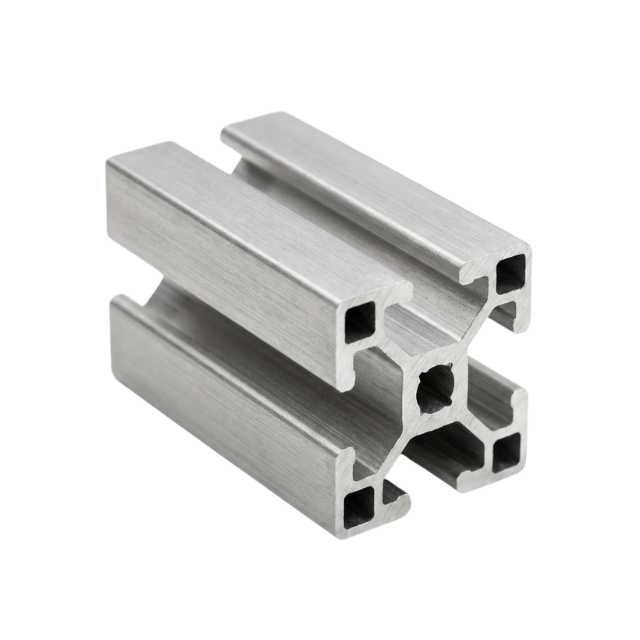

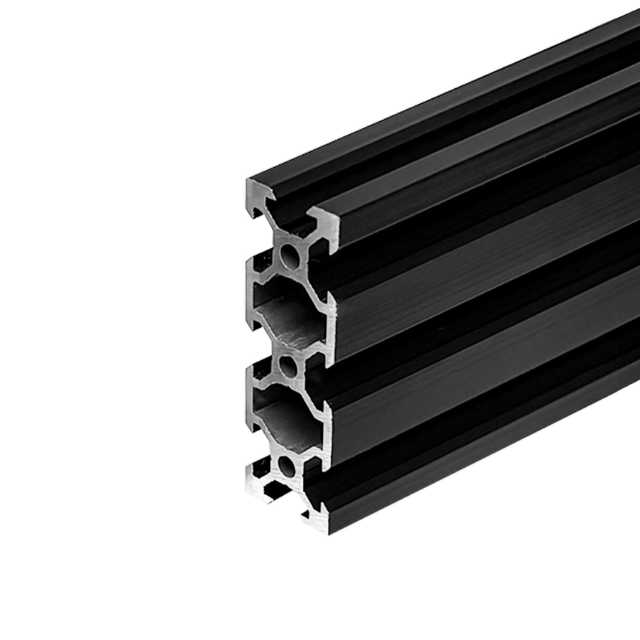

Our standard v-slot aluminum extrusion series is the go-to choice for DIY projects and light industrial framing. Available in popular sizes like 20×20 mm, 20×40 mm, 20×60 mm, and 20×80 mm, these profiles function as both structural beams and linear rails. The smooth V-groove on all four sides ensures seamless movement for V-wheels, making them ideal for laser cutters and robotics. They are praised for being easy to assemble while maintaining excellent stability.

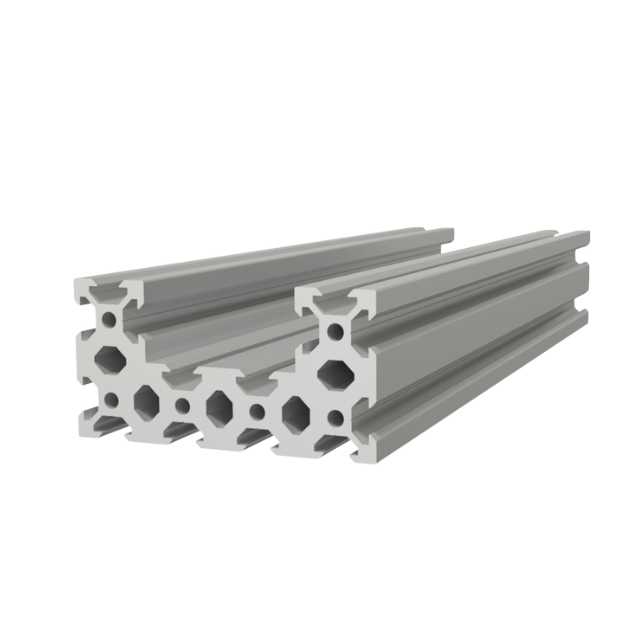

C-Beam Heavy Duty V-Slot Extrusions

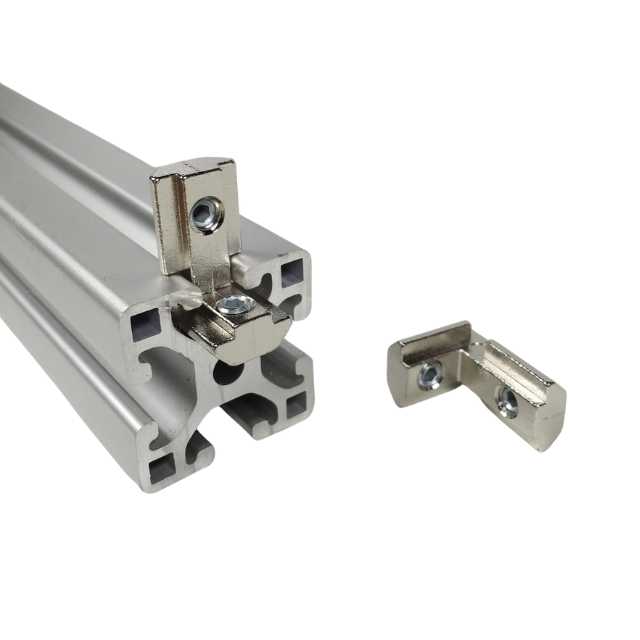

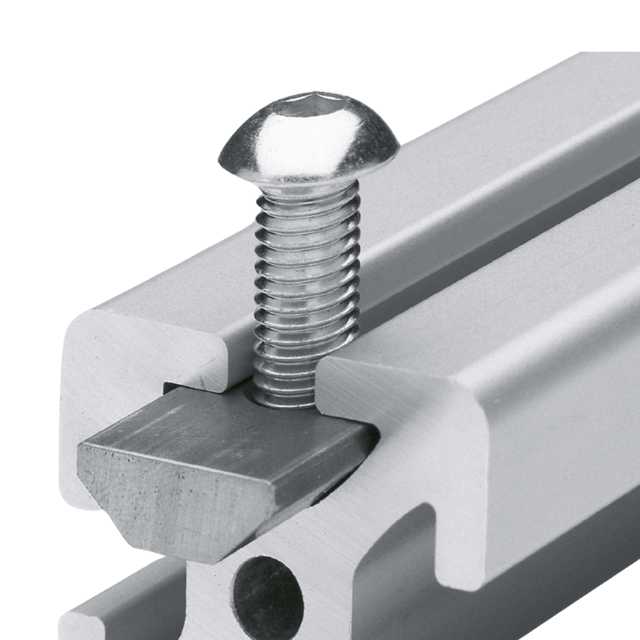

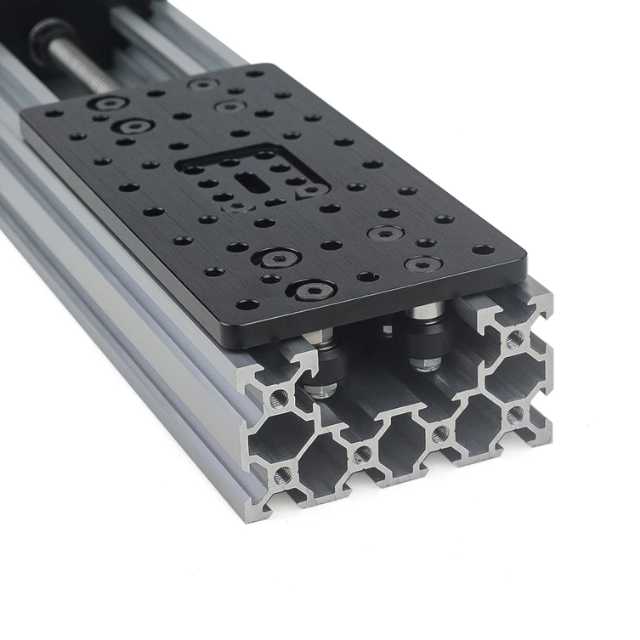

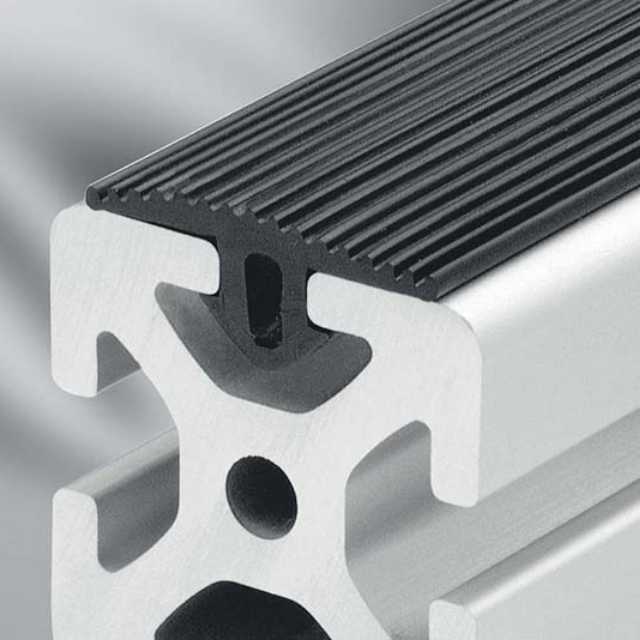

Compatible Accessories & Assembly Kits
Xingyong provides a one-stop solution by supplying essential hardware compatible with our v slot aluminum systems.
Why Choose Xingyong V Slot Aluminum
Partnering with Xingyong means securing a strategic manufacturing ally. We combine massive capacity with precision engineering to deliver high-quality v slot aluminum systems directly to your warehouse. By controlling every step from extrusion to finishing, we ensure competitive pricing and reliable lead times for your global supply chain.
Premium 6063-T5 Alloy & Anodizing
We use high-purity 6063-T5 alloy for superior rigidity. Our in-house anodizing provides a durable finish, ensuring your v-slot linear rail resists wear and corrosion for long-lasting performance.
Learn MoreFull Customization: From Cut-to-Length to CNC
Beyond extrusion, our CNC workshop handles drilling, tapping, and precision cutting. We tailor every v slot aluminum to your exact specs, saving you fabrication time and labor costs.
Learn More
Certified Quality Control & Testing
Operating under ISO 9001 and IATF 16949, our internal lab tests every batch. We guarantee strict dimensional accuracy for every v-slot aluminum extrusion before it leaves our factory.
Learn MoreFAQ of V Slot Aluminum
What is the difference between T-slot and V-slot aluminum profiles?
While both profiles look similar and are used for structural framing, the key difference lies in the groove geometry. A standard T-slot has a flat edge, making it ideal for static brackets and fasteners. In contrast, a v slot aluminum features a precise angular chamfer on the edge. This design allows V-wheels to sit inside the track and roll smoothly, transforming the profile into a functional v-slot linear rail for motion systems like 3D printers and sliders.
Are your V-slot extrusions compatible with standard industry accessories?
Yes, our products are designed with universal compatibility in mind. Our v-slot aluminum extrusion profiles fit standard series components, including T-nuts, gantry plates, and brackets found in popular systems like OpenBuilds. Whether you are assembling a DIY CNC router or stocking parts for retail, our aluminum extrusion profiles ensure a seamless fit with existing hardware ecosystems.
Can I order custom lengths and specific anodized colors?
Absolutely. As a direct manufacturer, Xingyong specializes in custom aluminum channels to fit your project requirements. We offer precision cut-to-length services to save you fabrication time. Additionally, our anodizing workshop can produce various finishes, including the popular matte black and clear silver, ensuring your v slot aluminum matches your brand aesthetic or specific durability needs.
What applications are best suited for these aluminum profiles?
These profiles are incredibly versatile. In the industrial sector, they are the standard for light automation, camera sliders, and cleanroom frames. In the retail world, heavy-duty versions serve as slatwall reinforcement channels, adding strength to MDF display boards to support heavy merchandise. The high strength-to-weight ratio of our 6063-T5 alloy makes them perfect for any application requiring rigid, lightweight structures.
Do you provide samples for quality testing before bulk orders?
Yes, we understand the importance of quality assurance for B2B buyers. We can provide sample sections of our v-slot linear rail so you can test the surface finish, dimensional accuracy, and hardness. We encourage you to inspect our anodizing quality and fitment with your wheels before committing to a full container load.
Related Product of V Slot Aluminum
Expand your inventory with Xingyong’s Aluminum Telescopic Poles and aluminum extrusion profiles. Designed to complement our v slot aluminum series, these products offer the same premium 6063-T5 quality. Consolidate your supply chain with our one-stop manufacturing solutions today.
Technical Support for V Slot Aluminum
Need engineering data for your v slot aluminum? Access our Technical Support hub for load charts, assembly guides, and alloy specs. Ensure your v-slot linear rail designs are optimized for performance with our expert resources.
