Water-Fed Pole

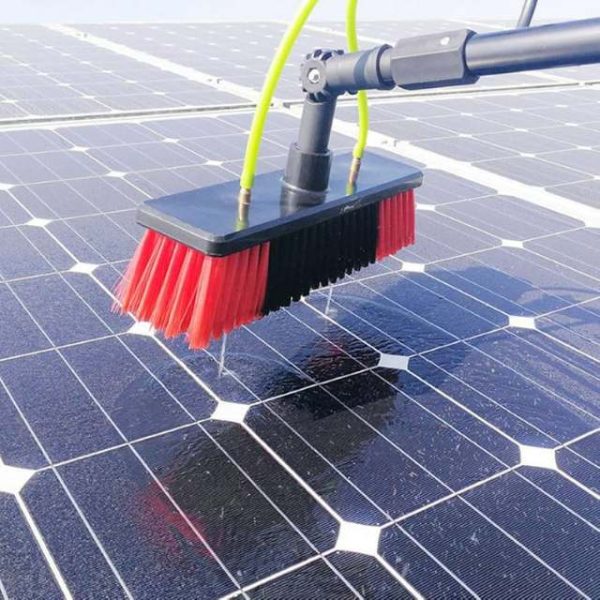

Internal or external hose routing delivers water to the brush and requires matched fittings, controlled hose movement and corrosion-resistant components.
Xingyong · OEM PV Cleaning Pole
OEM Solar Panel Cleaning Pole Manufacturer
Xingyong manufactures aluminum telescopic poles for solar panel brushes and water-fed PV cleaning systems. Cleaning-equipment brands, distributors and private-label buyers can customize the reach, collapsed length, tube structure, lock, brush adapter, hose routing, anodized finish, branding and packaging.
- Dry brush and water-fed cleaning configurations
- Soft-brush, swivel-head and custom tool adapters
- Application-based tube diameter, overlap and wall thickness
- OEM branding, accessories and export packaging
2–6Telescopic Sections
Dry / Water-FedCleaning Systems
3Main Lock Options
OEMBrush Adapter & Packaging
Product Overview
Solar Cleaning Poles Designed Around Reach and Total Working Load
A solar panel cleaning pole carries a brush, swivel head or water-fed brush to PV modules at extended reach. The structure must be selected using the complete working load—not only the aluminum shaft. Brush weight, water hose, water retained in the brush, working angle and operator force all affect deflection and handling.
Xingyong matches the nested tubes, section overlap, lock and brush connector for the intended system. Buyers can compare our custom telescopic pole structures, water-fed window cleaning poles and brush extension poles. Material requirements may reference the Aluminum Association, ASTM B221 and ISO 9001 guidance.
Specification Planning
Solar Panel Cleaning Pole OEM Options
Confirm the final specification against the brush, water system, working angle and target reach before sample production.
| Specification | OEM options | PV-cleaning consideration |
|---|---|---|
| Working reach | Short, medium and long-reach configurations | Match array position and ground-to-panel distance |
| Collapsed length | Custom by section count and package target | Balance transport, van storage and carton length |
| Sections | 2-section, 3-section or multi-section | More joints reduce packed length but require closer tolerance control |
| Aluminum tube | Custom diameter, wall thickness and overlap | Limit deflection under brush, hose, water and operating force |
| Lock | Twist, flip or push-button lock | Review wet operation, holding force and adjustment frequency |
| Brush adapter | Threaded, swivel, quick-release or custom molded connector | Match brush angle, anti-rotation requirement and head load |
| Water routing | Internal hose or external hose | Confirm hose diameter, movement, inlet and shut-off connection |
| Grip | Foam, TPR, molded handle or custom grip | Support wet-hand control during repeated push-pull movement |
| Finish | Anodized, brushed or powder coated | Match corrosion, cleanability and brand appearance |
| Packaging | Bulk carton, sleeve, color box or complete cleaning kit | Confirm brush, hose, adapters, instructions and barcode |
Cleaning System Options
Choose the Pole by Cleaning Function
Brush and Pole
Brush material, width, swivel angle and connector play should be reviewed together to protect the working surface and maintain control.
Dry Brush Extension Pole
A simpler hose-free configuration can be developed for compatible dry-cleaning heads and application-specific maintenance tools.
View Extension Pole Options →Lock Selection
Telescopic Locks for PV Cleaning Poles
Twist Lock
Continuous adjustment and a smooth outside profile can suit poles where the cleaning reach changes frequently.
View Twist Lock Poles →
Flip Lock
Fast operation and visible locking status support professional crews making repeated length changes.
View Flip Lock Poles →
Custom Collar Lock
Lock geometry and materials can be matched to the tube diameter, wet environment and required holding force.
View Lock & Connector Matching →
Long-Reach Engineering
Specify Deflection Using the Complete Cleaning System
A long pole may feel stable without a tool but behave differently when fitted with a wet brush and hose. For long-reach projects, Xingyong reviews the base-tube diameter, step-down sequence, wall thickness, overlap and number of joints using the intended brush weight and operating angle.
- Brush, swivel, hose and retained-water load
- Horizontal and angled working positions
- Tube deflection and joint movement
- Lock slip under repeated push-pull operation
- Collapsed length and transport constraints
See our telescopic pole load guide, multi-section design guide and heavy-duty telescopic pole options.
Why Us
Why Choose Xingyong for Solar Panel Cleaning Poles
Xingyong supports aluminum extrusion, tube processing, anodizing, plastic component matching, assembly and packaging. Inspection points are agreed during sampling so the approved pole structure can be repeated in mass production.
- Tube diameter, roundness, straightness and wall-thickness inspection
- Lock holding and repeated adjustment checks
- Brush-adapter fit, pull-out and anti-rotation review
- Hose routing and water-connector checks
- Finish, branding and packed-kit confirmation
Review our quality assurance process, anodizing options and retail-ready packaging service.
OEM Workflow
From Cleaning Brush to Production-Ready Pole
1. Define the System
Confirm panel layout, reach, working angle, brush, swivel, hose and target user.
2. Match the Structure
Select sections, tube dimensions, overlap, lock, adapter, grip and water routing.
3. Sample and Check
Verify extension, deflection, lock holding, brush fit, hose movement and handling.
4. Approve Production
Freeze specifications, inspection points, branding, accessories and packaging.
Technical Support
Related Solar Panel Cleaning Pole Manufacturer Blog Guides
Explore practical buying, specification and application guidance related to this product.
Aluminum Extension Pole for Solar Panel Cleaning: OEM Buying Guide
Best Window Cleaning Pole Guide
Telescopic Pole Load Capacity Guide
FAQ
Solar Panel Cleaning Pole Questions
What is the difference between dry and water-fed solar cleaning poles?
A dry pole carries a compatible brush or maintenance head without a water hose. A water-fed pole routes water to the brush and requires matched hose, inlet, valve and brush connections.
How should the pole length be selected?
Selection should use the ground-to-panel distance, panel angle, operator position and brush reach. Collapsed length, transport and package dimensions should be reviewed at the same time.
How do you control bending in a long solar cleaning pole?
Deflection is affected by base-tube diameter, wall thickness, alloy, section overlap, number of joints, brush weight, hose and working angle. Long-reach projects require application-based structural review.
Can you match our existing solar cleaning brush?
Yes. Send the brush, swivel and hose samples, drawings or dimensioned photos. Xingyong can review the adapter, thread, angle, anti-rotation requirement and tube interface before sampling.
Which lock is suitable for a water-fed pole?
Twist and flip locks are common choices, but the final selection depends on tube diameter, wet operation, adjustment frequency and required holding force. Lock and tube fit should be tested together.
What information is needed for an OEM quotation?
Provide working reach, collapsed length, brush and swivel details, total head weight, hose requirement, working angle, lock preference, quantity, branding, packaging and target market.
Related Cleaning Poles
Explore Other High-Reach Applications
Window Cleaning Pole
View Window Cleaning Poles →
Pool Cleaning Pole
View Pool Cleaning Poles →
Gutter Cleaning Pole
View Gutter Cleaning Poles →
Painting Extension Pole
View Painting Extension Poles →Develop a Solar Cleaning Pole for Your Product Line
Send the panel reach, brush and swivel details, water-system requirement, lock preference, quantity and packaging target for an OEM structure review.
