40 Foot Extension Pole Manufacturer
The Xingyong 40 foot extension pole reaches 12 m through 5–9 sections with three wall grades — 1.0 mm standard, 1.2 mm heavy-duty and 1.5 mm high-rigidity — so you tune stiffness to the job; engineered for high-reach exterior window cleaning and solar-panel servicing where most poles bend or flex.
- ✓ 6005 / 6063 / 6065 aluminum — structural alloys for long reach
- ✓ 3 wall grades: 1.0 mm std / 1.2 mm HD / 1.5 mm high-rigidity

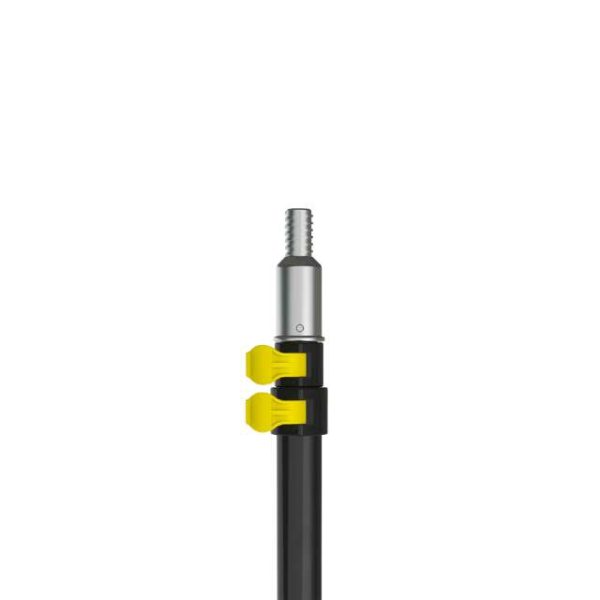

- ✓ Real pole weight 4–5.5 kg — flip / twist / universal thread
What Is a 40 Foot Extension Pole
A 40 foot extension pole is a high-reach aluminum pole that extends to roughly 12 m across 5–9 nested sections. At 12 m, rigidity is the deciding spec: rather than one fixed wall, we offer three wall grades — 1.0 mm standard, 1.2 mm heavy-duty and 1.5 mm high-rigidity — so you dial in deflection control against weight. With structural 6005 / 6063 / 6065 alloy the finished pole runs a real 4–5.5 kg. It is built for water-fed window cleaning and solar-panel servicing OEMs and high-rise exterior maintenance. For more rigidity at lower reach see the 30 ft pole; for longer classes see the 50 ft pole and 60 ft pole.
Where the 40 ft class sits in the range matters for sourcing. Step up from a 30 ft pole and you gain roughly 3 m of reach, but the leverage at the tip grows faster than the length — which is exactly why the wall grade becomes the lever rather than a fixed afterthought. A 30 ft pole in 1.0 mm standard wall feels stable; the same standard wall at 40 ft visibly softens at full extension, so most window-cleaning and solar OEMs move up to 1.2 mm heavy-duty for daily routes and reserve 1.5 mm high-rigidity for the steadiest tip control. Compared with the 50 ft pole, the 40 ft stays well inside a one-person handling envelope at 4–5.5 kg, where a 50 ft pole starts to demand a heavier wall just to stay usable and pushes weight up against operator fatigue. In short, 40 ft is the longest reach most crews can still work freehand for a full shift, and the three wall grades let you place a single SKU exactly between "light and nimble" and "rock-steady" without retooling the tube.
Types of 40 Foot Extension Pole
By Wall Grade (Std / HD / High-Rigidity)
The wall grade is the main rigidity lever at 40 ft: 1.0 mm standard is lightest, 1.2 mm heavy-duty adds stiffness for daily use, and 1.5 mm high-rigidity holds the steadiest line at 12 m — trading a little weight for deflection control.
By Section Count (5 / 6 / 7 / 8 / 9)
Fewer sections (5) mean stiffer joints but a longer collapsed length; 9 sections pack shorter for freight. At 40 ft the section count balances rigidity against shipping size.
By Application
High-reach window cleaning brands and solar-panel servicing OEMs, plus high-rise exterior maintenance — jobs the 20–30 ft class can't reach.
40 Foot Extension Pole Applications by Industry
The 12 m reach makes the 40 ft pole the working tool for a handful of specific trades. Each one buys a different wall grade for a different reason — here is how the same pole platform maps onto four OEM buyer types.
Window-Cleaning Brands
Water-fed pole brands use the 40 ft class to reach 3–4 storey facades from the ground, skipping ladders and lifts. The pole feeds a brush head and hose up the tube, so they want a 1.2 mm heavy-duty wall — stiff enough to control the brush at height yet light enough for an 8-hour route. We thread a window-cleaning pole tip and route the hose internally on request.
Solar-Panel Servicing OEMs
Cleaning ground-mount arrays and low-pitch commercial roofs from the array edge needs a steady tip that won't scratch glass. This is the classic case for the 1.5 mm high-rigidity wall — minimum deflection so the brush tracks the panel surface. We supply this as a solar-panel cleaning pole with angle adapters and soft-bristle heads.
Facade & Sign Maintenance
Crews dusting signage, inspecting cladding or running camera/sensor heads up a facade value reach over weight, but still need rigidity to aim a tool precisely. A 1.2 mm heavy-duty or 1.5 mm high-rigidity wall with fewer sections (5–6) gives the stiffest joints for tip-accurate work at 12 m.
Light Industrial & Facilities
Warehouse light changing, gutter clearing, dust knock-down and overhead inspection are intermittent high-reach tasks. Here the 1.0 mm standard wall wins — lightest to grab off the wall, easiest to handle one-handed, and entirely adequate when the pole is extended only as far as the task needs.
Engineering & Sourcing Notes for 40 ft Poles
Specifying a 40 ft pole is mostly about managing one thing — deflection at 12 m — and then settling the practical trade-offs around it. The notes below are how our engineers brief a 40 ft PO.
Deflection & Wall-Grade Selection
At 12 m the tip moves; the question is how much. Wall thickness, not just diameter, drives stiffness, which is why we offer three grades. As a rule: 1.0 mm standard for occasional reach, 1.2 mm heavy-duty for daily routes, 1.5 mm high-rigidity when a tool must stay precisely aimed. Run your duty cycle through our load capacity & deflection guide before locking the wall.
Alloy & Weight Trade-off

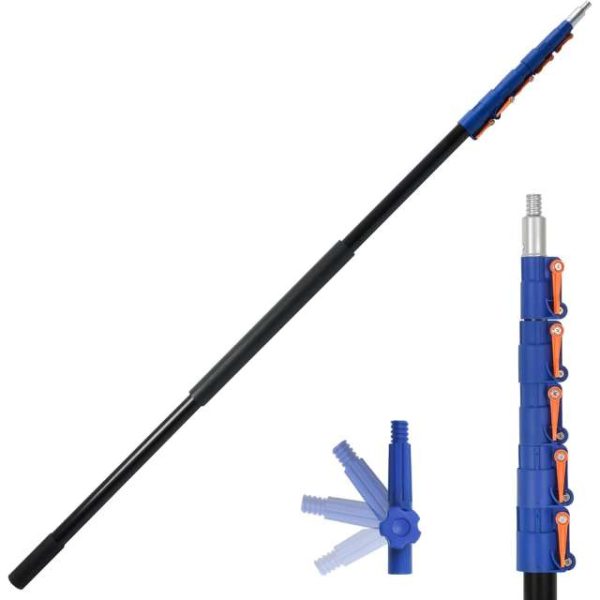

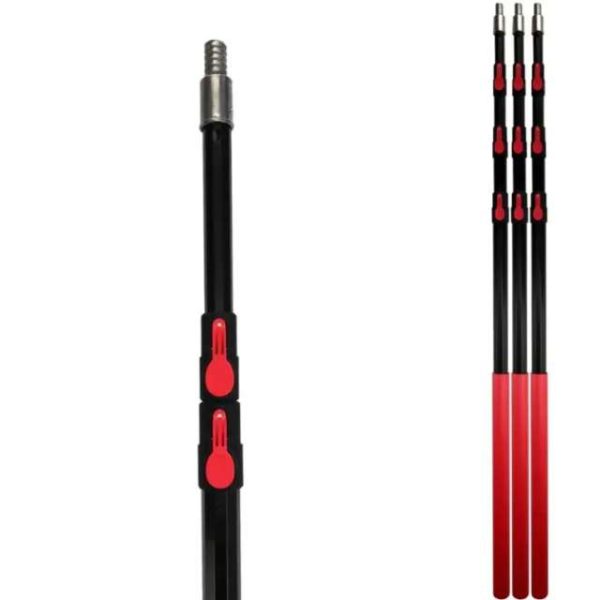

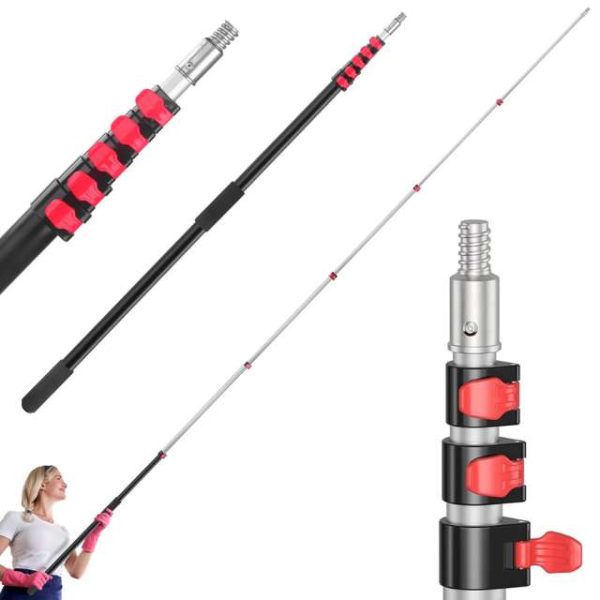

We extrude in 6005 / 6063 / 6065 — 6005 and 6065 carry the higher tempers for long-reach stiffness, 6063 finishes cleanest for anodizing. The finished pole lands at a real 4–5.5 kg: the lighter end is 1.0 mm standard, the heavier end 1.5 mm high-rigidity. Going past 5.5 kg hurts an operator over a full shift, so we tune wall and section count to stay inside it. See the alloy selection guide.
Section Count, Packing & Freight
Section count is the lever between rigidity and shipping size. 5 sections give the stiffest joints but a long collapsed length; 9 sections pack short for cheaper freight and smaller cartons. We set section count to your carton and container target so pcs/carton and CBM stay efficient — tell us your packing limit and we optimize around it.
Per-Batch QC
Every 40 ft batch is checked for alloy/temper, wall thickness, straightness, lock-slip under load, deflection at full extension and thread-fit on the tip — under ISO 9001 / IATF 16949 / BSCI. Long-reach poles fail at the joints first, so flip-lock holding force and overlap length are sampled on every run, not just at PPAP.
Why Choose Xingyong for 40 Foot Extension Poles
In-House Production
14 extrusion lines, 12 anodizing lines and 22 machining lines — tube, finish and assembly under one roof since 2010.
Sag-Control Engineering
Three wall grades, step-down diameters and structural alloy tempers are tuned specifically for the long-reach classes.
Custom OEM Options
Color anodizing, printed grips, water-fed thread tips and private-label branding for your 40 ft line.
Audit-Ready QC
Alloy, wall-thickness, deflection and thread-fit tests per batch under ISO 9001 / IATF 16949 / BSCI.
Frequently Asked Questions: 40 Foot Extension Pole
How much does a 40 ft pole deflect at 12 m, and which wall grade should I choose?
Wall grade is the rigidity lever at full extension. 1.0 mm standard is lightest for occasional reach; 1.2 mm heavy-duty adds stiffness for daily window-cleaning routes; 1.5 mm high-rigidity holds the steadiest line at 12 m for solar-panel work, at the cost of a little weight. Some deflection is normal at 12 m — pick the heavier wall when control matters and extend only as far as the job needs.
How many sections does the 40 ft pole have and how does it lock?
It is available in 5 / 6 / 7 / 8 / 9 sections (custom). Fewer sections give stiffer joints and a longer collapsed length; more sections pack shorter for freight. Flip (external) locks are recommended for long poles because they resist slip under load; twist locks and universal threads are also available.
What is the collapsed / shipping length of the 40 ft pole?
Collapsed length depends on section count — we tune section count to balance rigidity against your carton and container limits. Tell us your packing target and we optimize pcs/carton.
How much does the 40 ft extension pole weigh?
A finished 40 ft pole runs a real 4–5.5 kg, depending on wall grade and section count. The 1.0 mm standard wall sits at the lighter end; the 1.5 mm high-rigidity wall at the heavier end where deflection control is the priority.
What is the MOQ for OEM 40 ft poles?
MOQ is flexible for established buyers, and lead time runs in the standard production window once specs and artwork are locked. See our sample & MOQ policy and lead-time guide.
Which wall grade should each application use?
As a quick map: 1.0 mm standard for intermittent facilities and light-industrial reach where weight matters most; 1.2 mm heavy-duty for daily water-fed window-cleaning routes that need control without fatigue; 1.5 mm high-rigidity for solar-panel servicing and facade/sign work where the tip must stay precisely aimed at 12 m. When unsure, the 1.2 mm grade is the safest single-SKU choice for a mixed fleet.
Can you customize the 40 ft pole for our brand?
Yes — we run full OEM/ODM. You can specify reach, section count and wall grade, then layer on color anodizing, printed or heat-shrink grips, water-fed thread tips, end caps and private-label branding. Build your spec sheet on our custom telescopic pole page and we quote against it.
What certifications and quality systems do you hold?
Our 40 ft poles are produced under ISO 9001, IATF 16949 and BSCI, with in-house extrusion (14 lines), anodizing (12 lines) and machining (22 lines) since 2010. That vertical integration means alloy traceability, per-batch wall and deflection testing, and audit-ready documentation for your own customers.
Related High-Reach Lengths
Brief Your 40 Foot Extension Pole PO to a Real Factory
Send your reach, section count, wall grade and thread spec — we quote within 24 hours.
