Direct Source for Industrial T Slot Aluminum
Xingyong T Slot Aluminum, also known as structural aluminum extrusion, gives OEM buyers a modular framing system that assembles fast, stays corrosion-resistant, and supports machine guards, workstations, conveyor frames, cleanrooms, and custom factory builds.

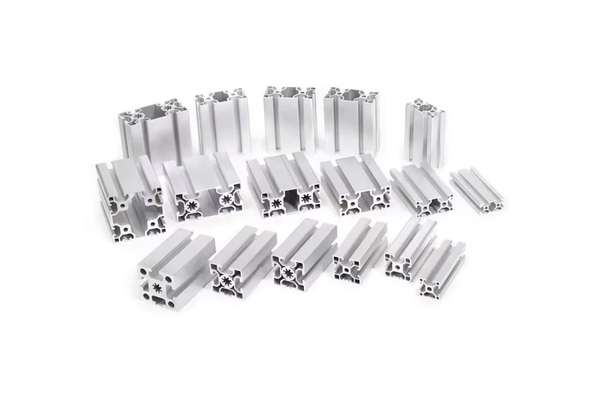

What is T Slot Aluminum
Are you looking for a versatile building solution? Xingyong T Slot Aluminum, also known as structural aluminum extrusion, is a modular framing system designed for fast and easy building. Unlike steel that requires welding, these profiles feature special T-shaped grooves so nuts slide into the track and parts bolt together like an industrial construction kit.
This approach lets buyers assemble machine guards, workstations, and storage racks quickly without special tools. The structure stays lightweight, strong, and rust-resistant, while its modular geometry keeps future modification easy for expanding production lines.
| Attribute | Specification Details |
|---|---|
| Product Name | Industrial T Slot Aluminum / Structural Aluminum Extrusion |
| Alloy Grade | 6063 (Standard), 6061, 6005 |
| Temper | T5 (Most Common), T6 (High Strength) |

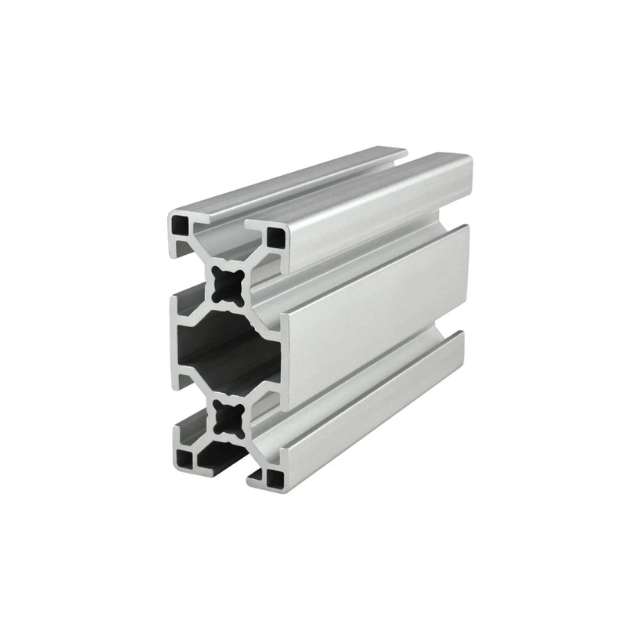

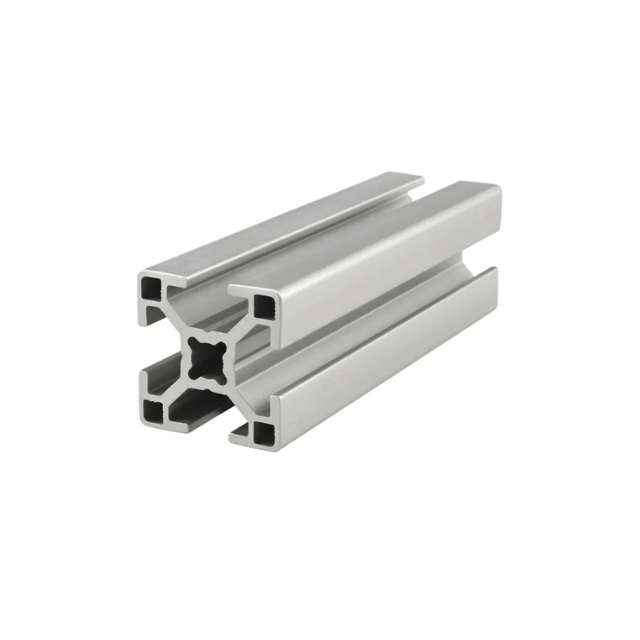

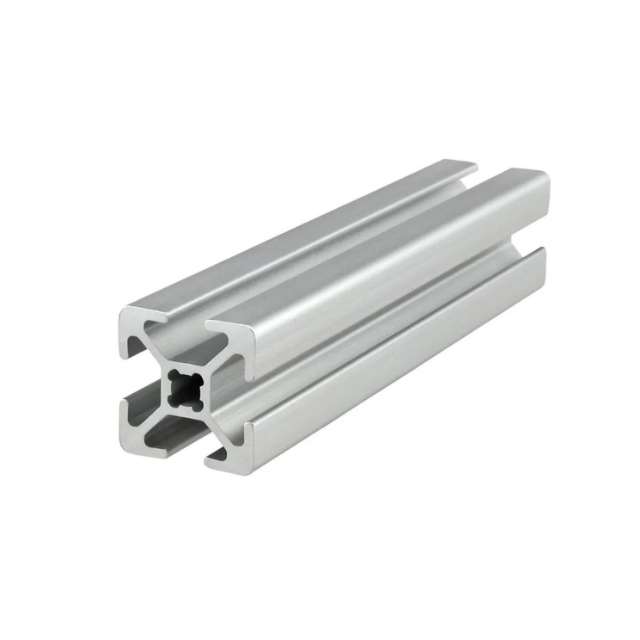

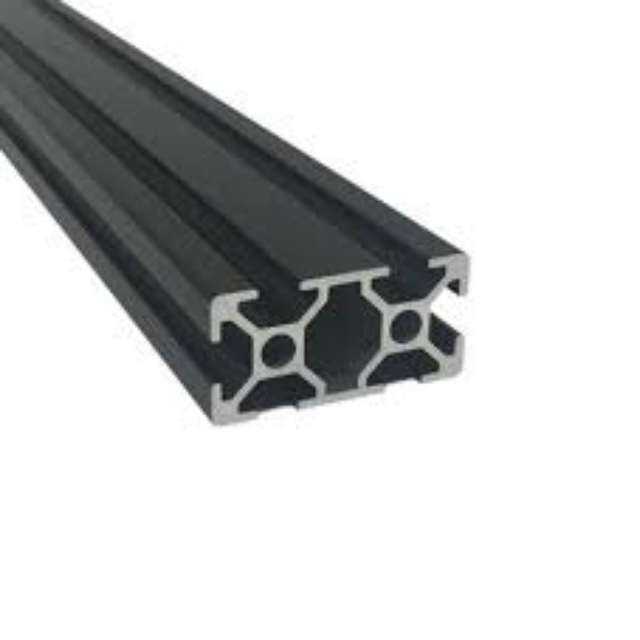

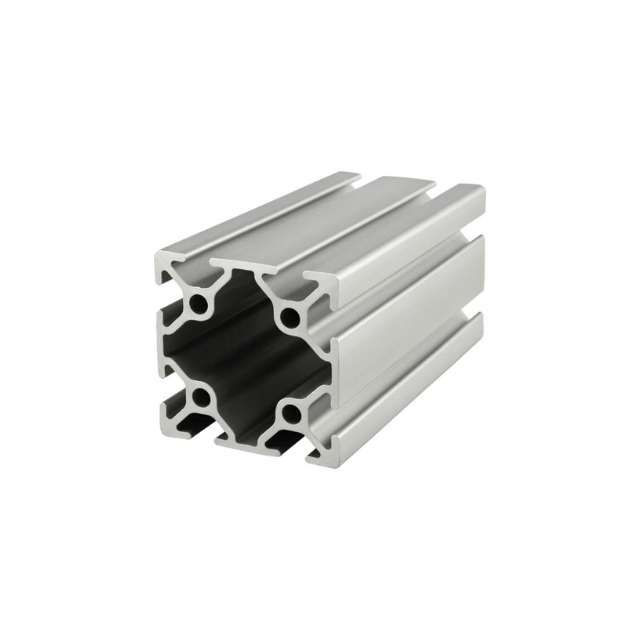

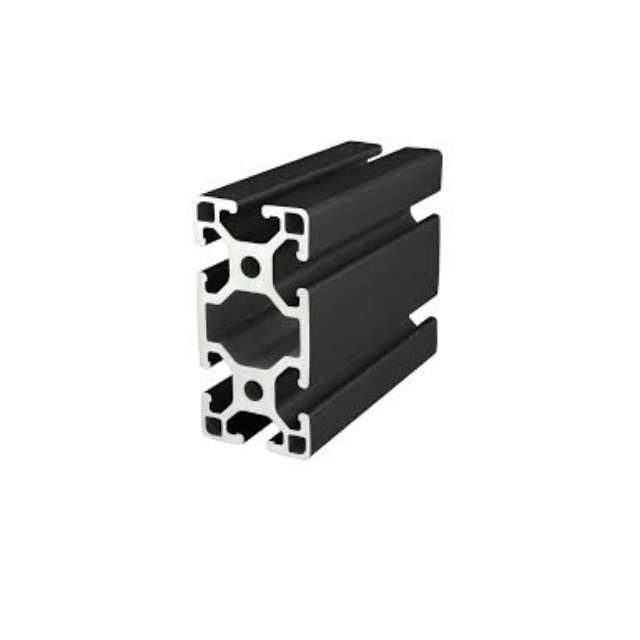

| Metric Series | 20 Series (2020, 2040), 30 Series (3030, 3060), 40 Series (4040, 4080), 45, 50, 60, 80, 100 Series |
| Inch Series | 10 Series (1 inch), 15 Series (1.5 inch), 20 Series (2 inch) |

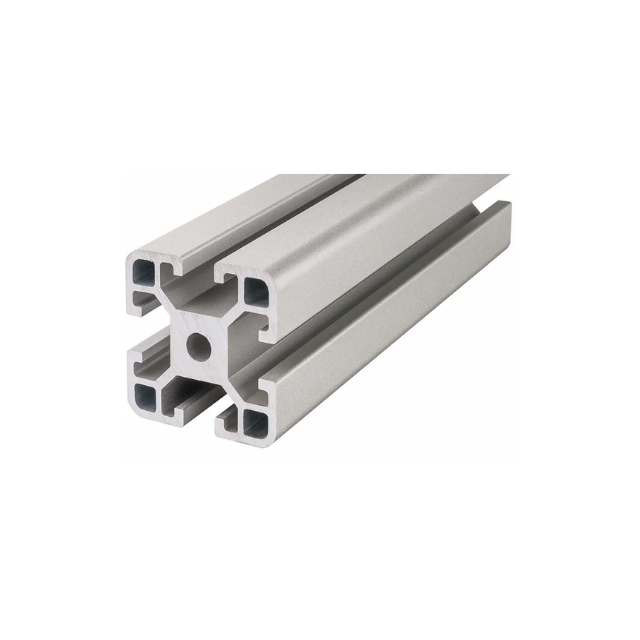

| Slot Width | 6 mm (Slot 6), 8 mm (Slot 8), 10 mm (Slot 10) |

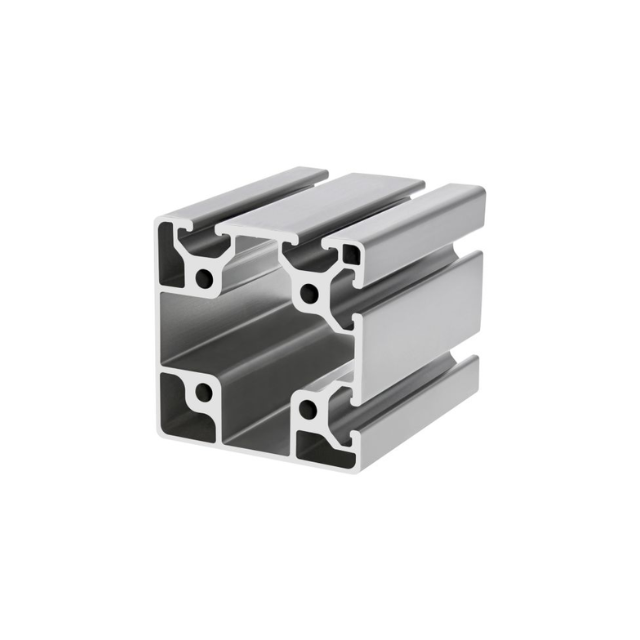

| Surface Treatment | Anodized (Clear/Silver, Black), Powder Coated, Electrophoresis, Mill Finish |
| Anodizing Thickness | Standard 10-15µm (Customizable up to 25µm) |
| Standard Length | 5.8 m, 6 m, 6.02 m (Export Standard) or Cut-to-size |
| Machining Service | Precision Cutting, Drilling, Tapping, Milling, Counterboring (CNC) |
| Tolerance Standard | GB/T 5237.1-2017, EN 755, High Precision Grade |
| Certification | ISO 9001:2015, IATF 16949, SGS, RoHS |
| Application | Workstations, Machine Guards, Conveyor Systems, 3D Printer Frames, Cleanrooms |
Types Of T Slot Aluminum Profile
Find the right industrial aluminum framing for your project by series, slot size, finish, and application. The groups below follow the original source page and keep the same product mix, while presenting each profile as a clean image card for WordPress content use.

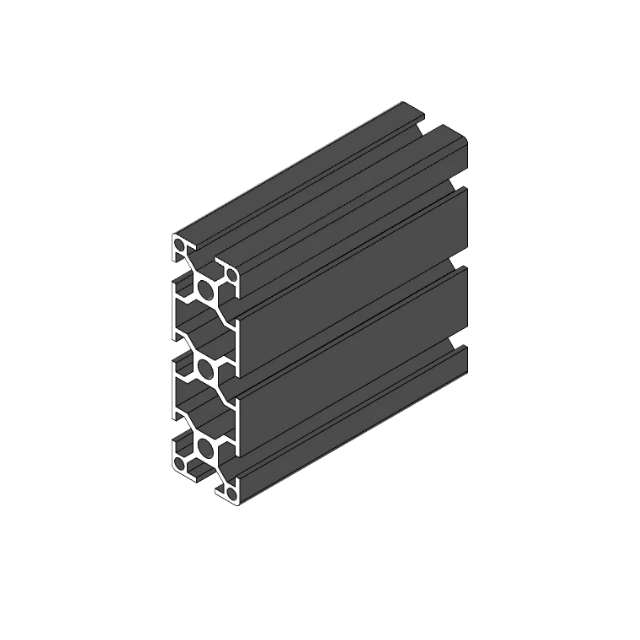

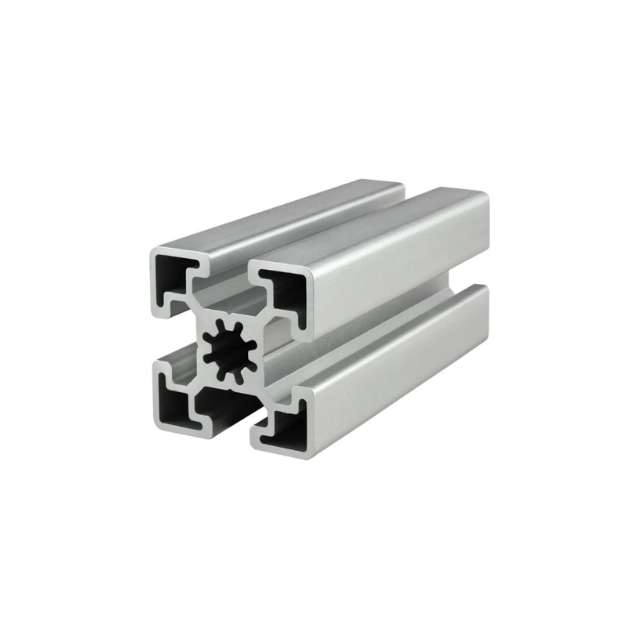

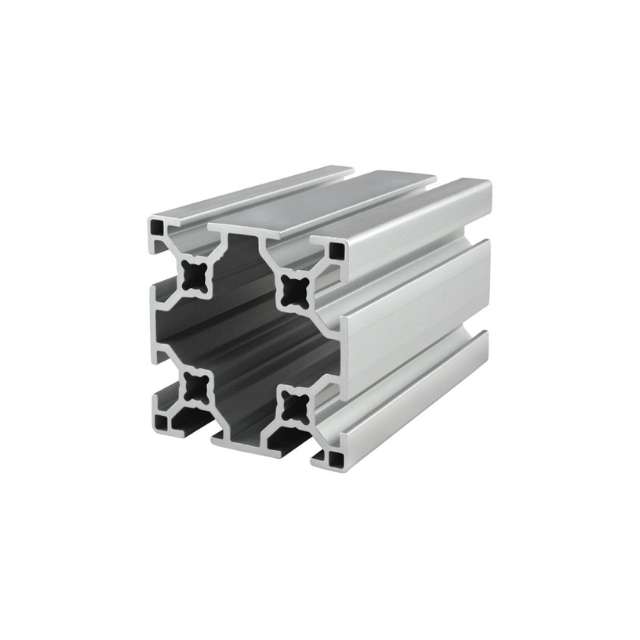

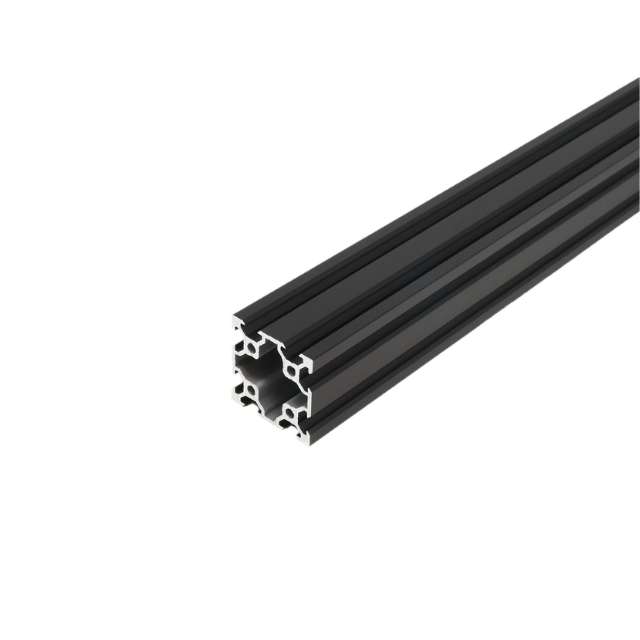

Metric Series T-Slot Aluminum

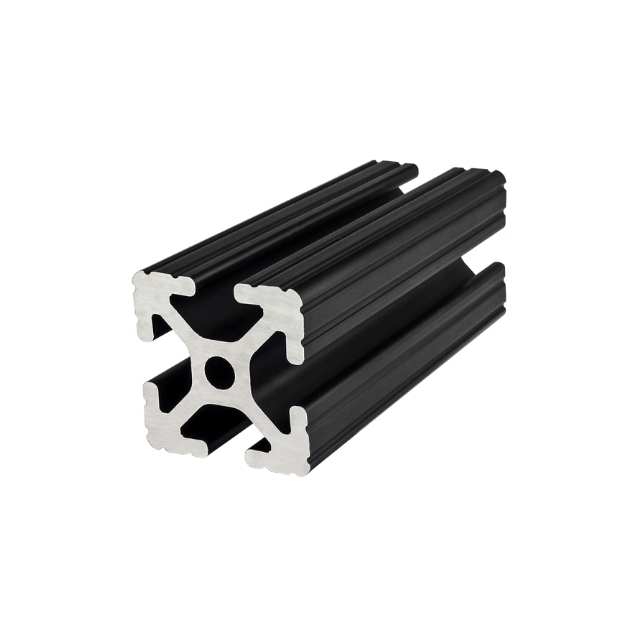

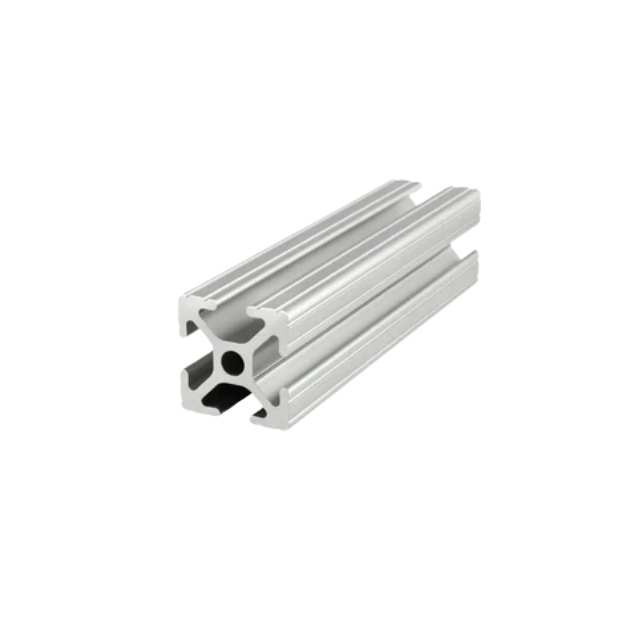

Imperial Inch Series T Slot Profiles

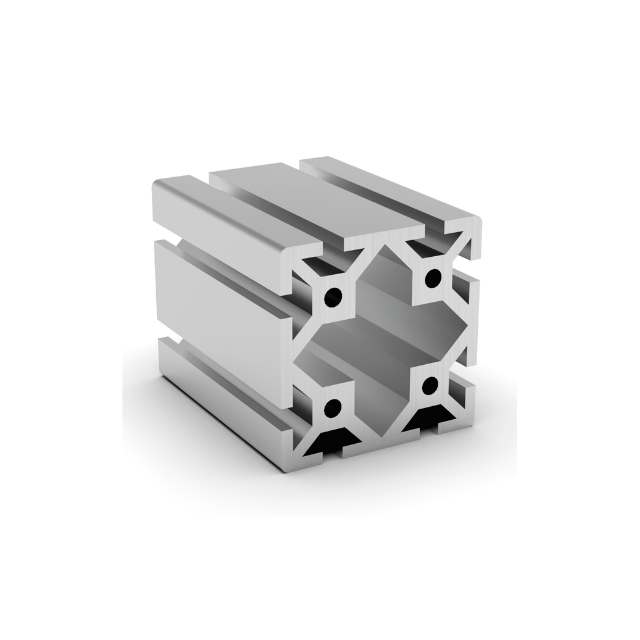

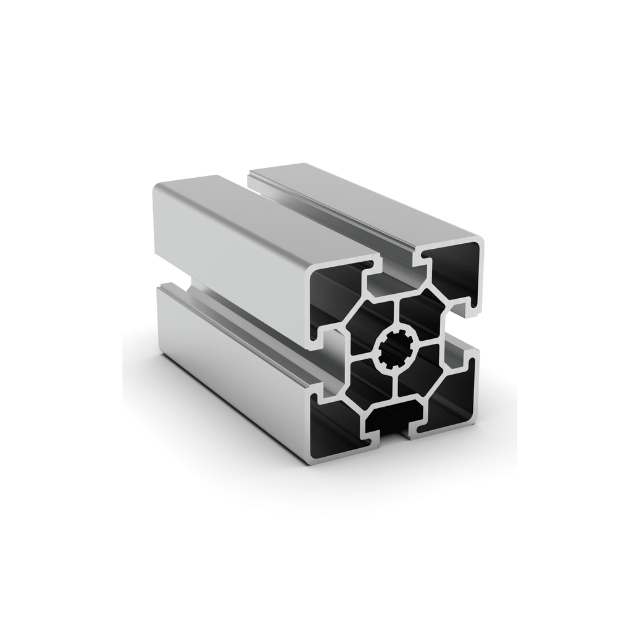

T Slot Aluminum Profiles by Slot Width

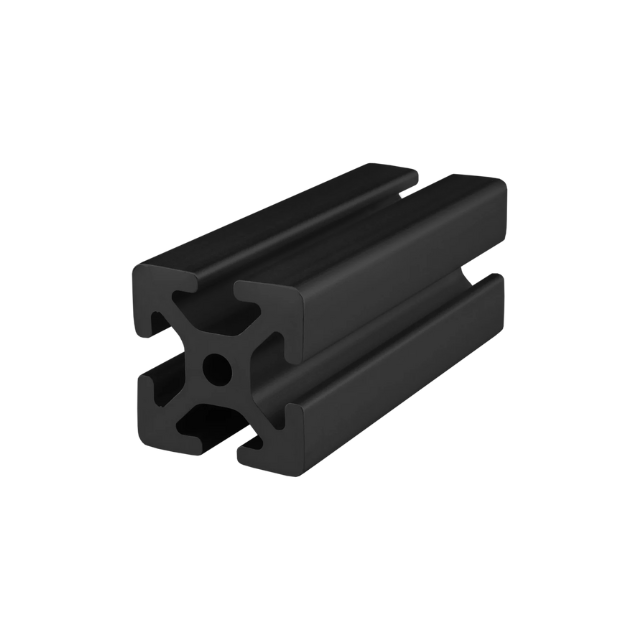

T Slot Aluminum Surface Finish Options

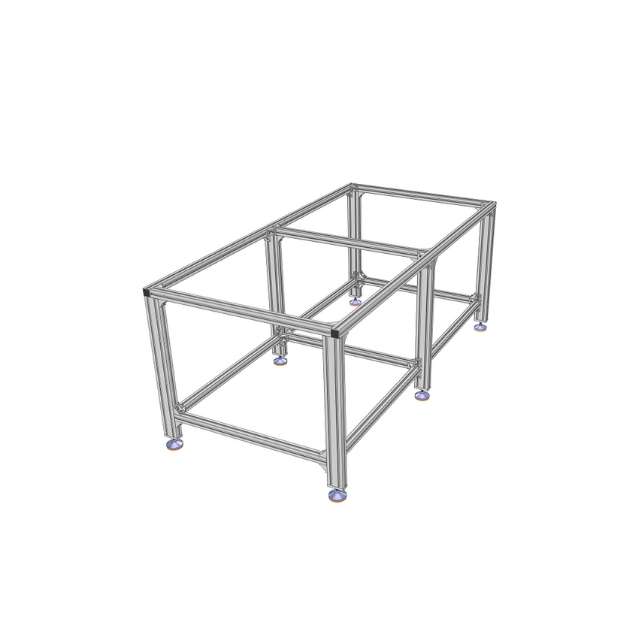

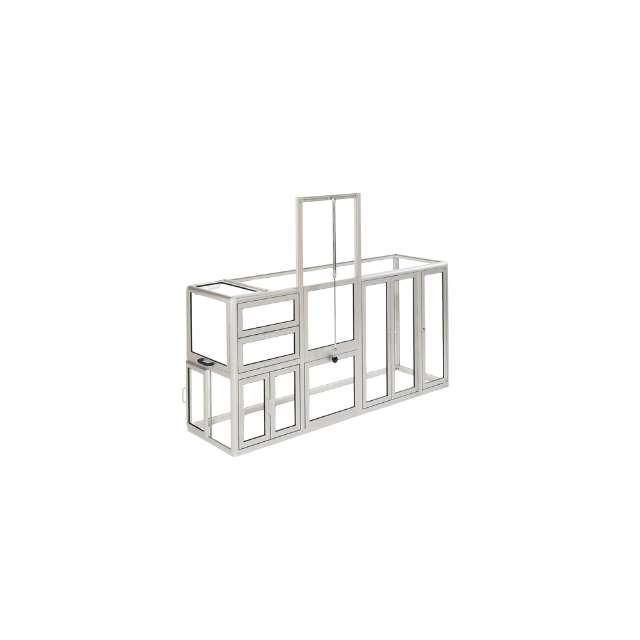

T Slot Aluminum Application-Based Profiles
Why Choose Xingyong T Slot Aluminum
When you partner with Xingyong, you get more than raw material. You gain a manufacturing partner with over 20 years of experience, broad production capacity, and control across extrusion, finishing, machining, and inspection. The three capability blocks below preserve the source content while keeping media on the left, as you requested.
Premium Raw Materials and Strict Alloy Control
One-Stop Customization and CNC Services
Certified Quality Management Systems
FAQ of T Slot Aluminum
Are your T slot aluminum profiles compatible with other major structural systems?
Yes, our modular aluminum profile system is designed to meet international standards. Whether you are using metric series like 3030 aluminum profile or 4040 aluminum extrusion, or inch series profiles, our dimensions and slot geometries are generally compatible with common hardware and accessories from major global brands. That makes it easier to integrate new frames into existing production lines without special fasteners.
What is the difference between T-Slot and V-Slot profiles?

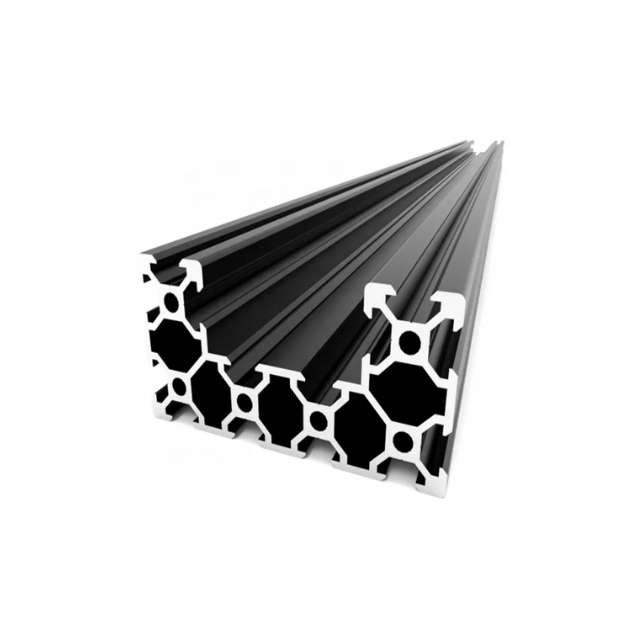

The main difference lies in the groove shape. Standard aluminum t-slot profiles have a flat edge inside the track and are designed primarily for static structures like frames, workbenches, and machine guards. V-slot profiles have chamfered edges that allow wheels to roll smoothly inside the track. If you are building a 3D printer or a linear rail extrusion system requiring movement, V-slot is the better choice. For robust stationary frames, T-slot is ideal.
Which aluminum alloy should I choose for my project, 6063 or 6061?
For most industrial aluminum framing applications, we recommend 6063 T5 aluminum. It offers an excellent surface finish for anodizing and sufficient strength for racks, guards, and workstations. If your project involves heavier structural loads or higher tensile strength demands, such as vehicle frames or heavy machinery, we can extrude using 6061 T6 alloy instead.
Do you offer cut-to-length services or custom machining?
Absolutely. We are a full-service custom aluminum extrusion manufacturer. We can provide cut to size t slot aluminum to your exact specifications, and our CNC workshop handles drilling, tapping, counterboring, and milling. That means buyers can receive ready-to-assemble kits and reduce internal labor.
How do I know which profile series to use for heavy loads?

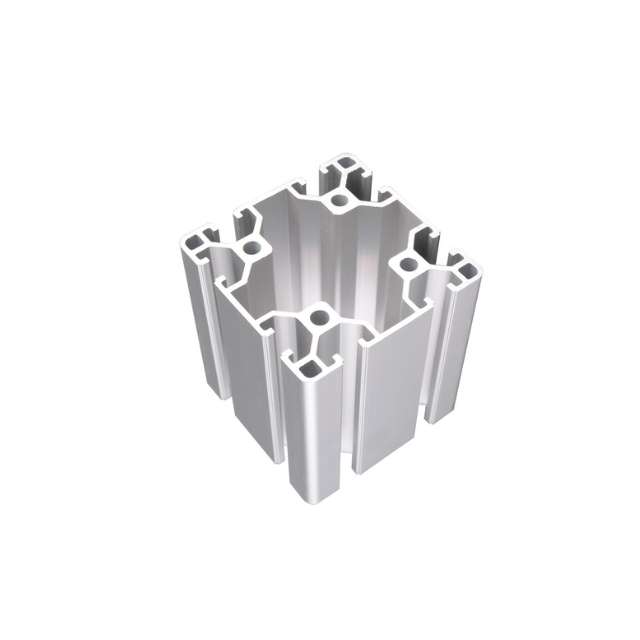

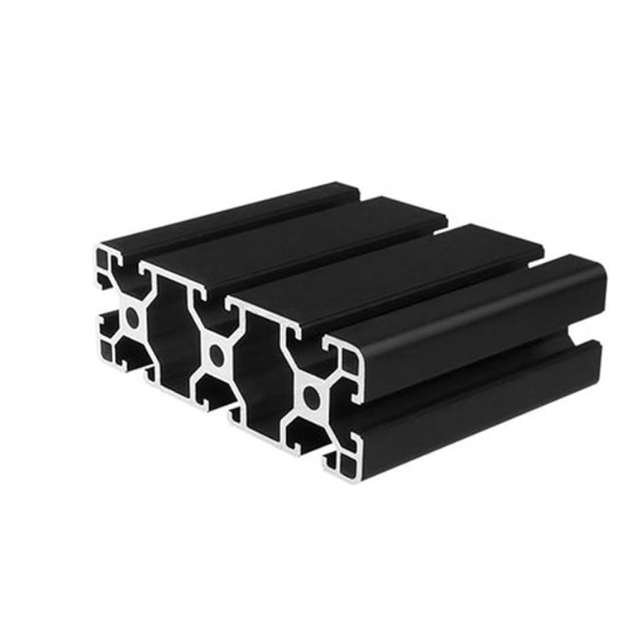

For light-duty applications like display stands, 2020 aluminum extrusion is usually sufficient. For standard industrial tables and enclosures, the 40 series is the most popular choice. For high-stress applications such as heavy conveyor supports or large cleanroom structures, we recommend stepping up to heavy duty aluminum rail options like 8080 t slot aluminum or 40120 profiles, which use thicker walls and stronger internal webs to resist bending.
Related Product Of T Slot Aluminum
A strong frame needs more than rails. To finish your T Slot Aluminum project efficiently, you also need matching accessories and complementary fabricated items. Explore our standard aluminum tubes and custom telescopic poles to consolidate sourcing and simplify shipping.
Technical Support for T Slot Aluminum
Do you need engineering advice for your T Slot Aluminum project? We know that calculating load limits and selecting the right connectors can be challenging. Whether you are designing a complex modular aluminum profile system or need tips on assembling heavy duty aluminum rail, our expert resources are here to help. We have compiled guides on frame assembly, alloy selection, and structural design best practices so your build stays safe and efficient.
