Trusted Aluminum Solar Panel Frame Manufacturer in China
Enhance the structural integrity of your photovoltaic modules with Xingyong, a specialized manufacturer in China. Our custom aluminum solar panel frames act as the backbone of your solar system.
-
High-strength 6063/6005 alloy resists corrosion, salt mist, and deformation.
-
Precision corner keys ensure seamless connection for waterproof and secure assembly.
-
Anodized black finishes offer superior UV resistance and modern visual appeal.
What Is Solar Panel Frame
Solar panel frame is the strong aluminum border that holds a photovoltaic module together. It acts like a protective shield, keeping the glass and delicate internal parts safe from heavy snow, strong wind, and rain. Xingyong uses aluminum because it is lightweight and does not rust. Beyond protection, the frame provides a solid structure that allows you to mount the panels securely onto roofs or racks. Using a high-quality solar panel frame is essential to make sure your solar energy system lasts for a long time.
| Attribute | Specification Details |
|---|---|
| Product Name | Aluminum Solar Panel Frame / PV Module Frame |
| Material (Alloy) | 6063, 6005 (High strength for heavy loads) |
| Temper | T5, T6 |
| Surface Treatment | Anodized (Sandblasting optional for matte finish) |
| Anodizing Thickness | Standard 10-15µm (Customizable up to 25µm) |
| Color Options | Silver (Natural), Black (All-black aesthetics), Custom |
| Standard Heights | 30mm, 35mm, 40mm, or Custom Profile |
| Length | Custom cut to module dimensions (e.g., 1.6m – 2.4m) |
| Processing | Precision Sawing, Punching, Drilling, Corner Key Slots |
| Tolerance Standard | High Precision Grade (GB/T 5237.1-2017) |
| Corner Connection | Designed for Corner Keys (L-keys) or Screw Joint |
| Hardness (Webster) | 6063: ≥12HW | 6005: ≥14HW |
Types categories
Xingyong Solar Panel Frame Types
Explore Xingyong‘s comprehensive aluminum solutions for the solar industry. From sleek black frame solar panels components to robust structural profiles for ground and roof mounting, we extrude high-quality aluminum to fit every project need.

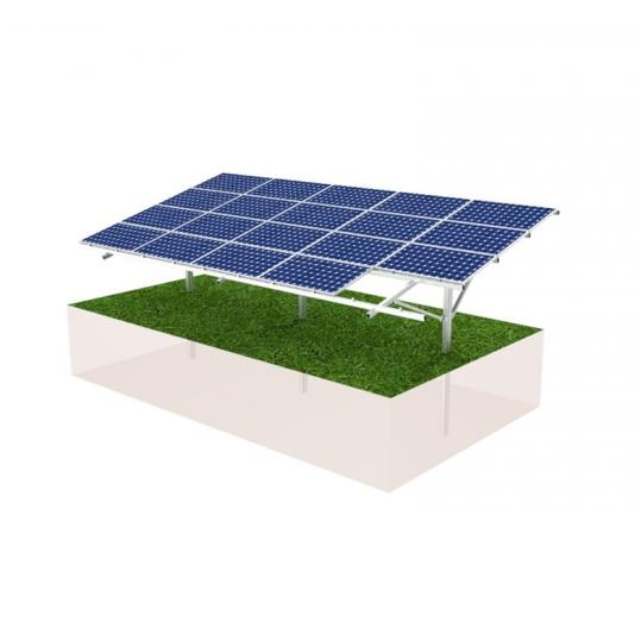

solar panel ground mounting frames
We extrude high-strength aluminum beams and rails for large-scale ground utility projects. Our heavy-duty profiles are engineered to withstand high wind and snow loads, ensuring stability for your solar farm.

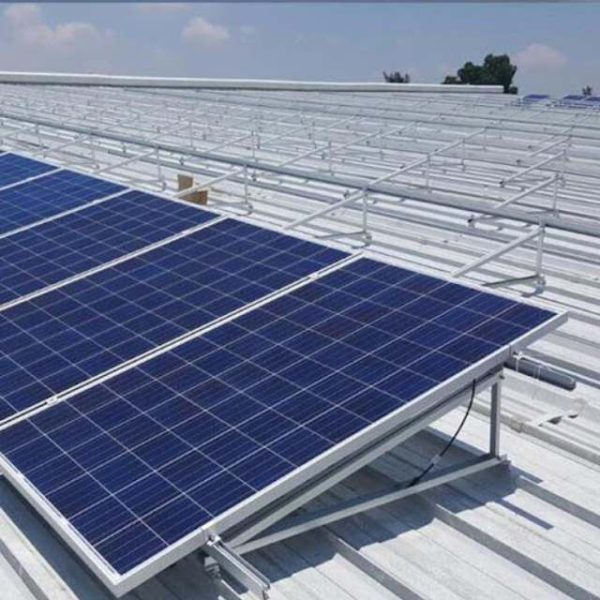

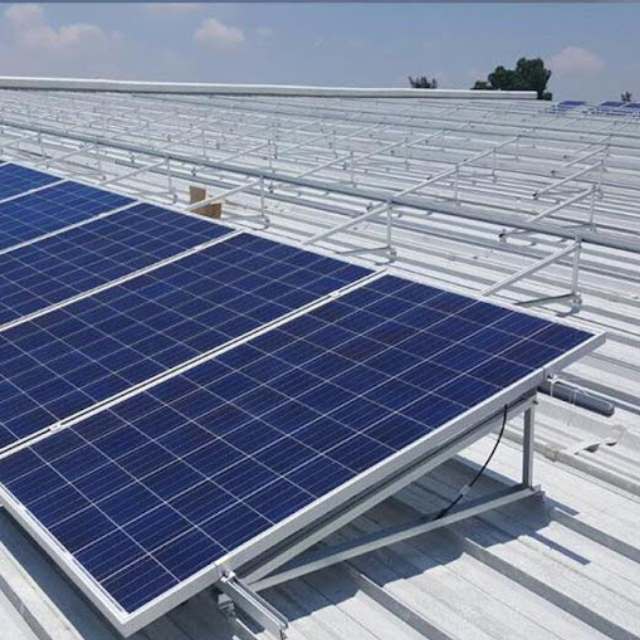

solar panel frame for flat roof
Our lightweight aluminum profiles are ideal for flat roof ballast systems. Designed for easy assembly, they protect roof membranes while providing a secure, aerodynamic base for commercial installations.

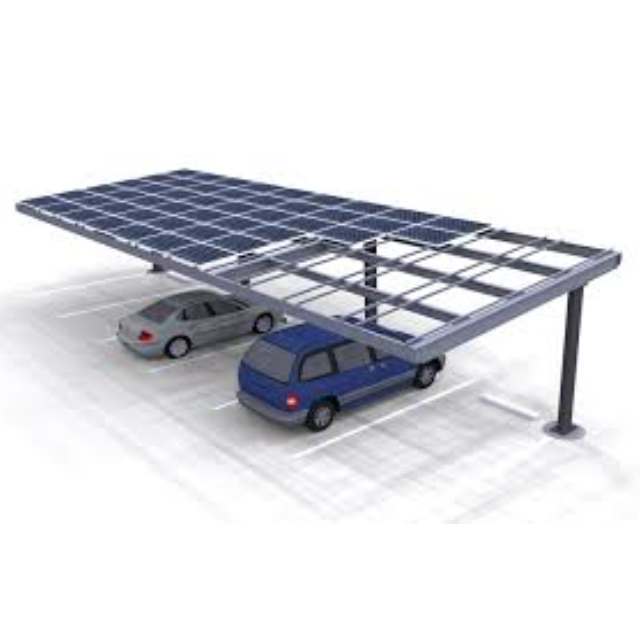

carport frame for solar panels
Create functional solar parking structures with our robust aluminum carport profiles. We provide custom-extruded columns and rails that are waterproof, corrosion-resistant, and aesthetically pleasing for commercial parking lots.

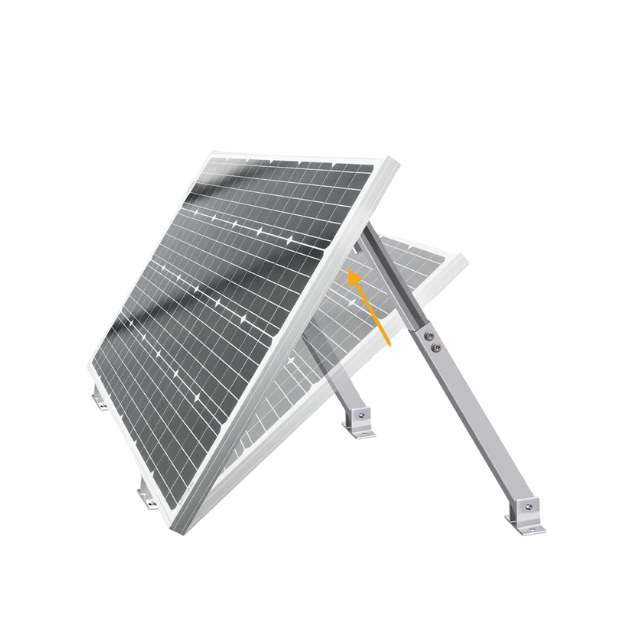

adjustable solar panel frame
Maximize energy output with our adjustable aluminum profiles. Leveraging our telescopic pole expertise, we manufacture tilting frames that allow users to optimize panel angles based on the season.

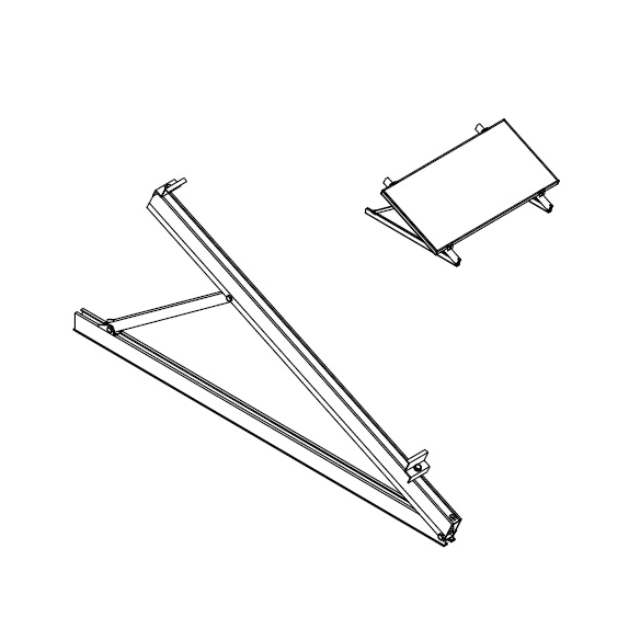

free standing solar panel frames
Perfect for off-grid or agricultural use, our free-standing aluminum structures offer flexible installation. We manufacture durable, corrosion-resistant poles and rails that hold panels securely in any terrain.
black frame solar panels
Achieve a premium all-black look with our matte black anodized aluminum frames. These durable borders offer superior UV resistance and perfect color consistency, ideal for modern residential rooftops.
Why Choose Xingyong Solar Panel Frame
Partner with Xingyong for world-class speed and precision. We combine robust aluminum PV frame manufacturing with reliable delivery, solving your supply chain headaches through consistent quality and strict material control.
Massive Production Capacity for Solar Panel Frame
With 14 extrusion lines and a 3,000-ton monthly capacity, we handle urgent volume orders easily. We ensure consistent, on-time delivery for your solar panel frame needs.
Wide range of press sizes (350T-2000T).
Automated flow speeds up output.
Guaranteed schedules for contract partners.
Superior Raw Material Control For Solar Panel Frame
We use high-purity 6063/6005 billets, never scrap. Strict sourcing ensures every aluminum PV frame meets mechanical standards to withstand heavy snow loads and wind pressure.
Traceable batch numbers for every shipment.
Optimized alloy formulas for strength.
100% new aluminum ingot input.
One-Stop Customization and Processing For Solar Panel Frame
Our CNC workshop delivers fully machined solar module frames. From precision cutting to punching and laser marking, we provide ready-to-assemble solutions tailored strictly to your drawings.
Precision CNC machining for corner keys.
Custom logo laser marking available.
Complex shapes per your specifications.
Rigorous Lab Testing and Certification For Solar Panel Frame
We guarantee every solar panel frame passes strict salt spray and tensile tests before it leaves our factory.
Salt spray testing for corrosion resistance.
Hardness verified by Webster testers.
IATF 16949 & ISO 9001 certified.
FAQ Of Solar Panel Frame
What is the best aluminum alloy for solar panel frames: 6063 or 6005?
It depends on your project needs. 6063-T5 is the industry standard for most solar panel frames due to its excellent balance of cost, corrosion resistance, and surface finish. However, for commercial projects in areas with heavy snow or high wind loads, we recommend 6005-T6 alloy because it has higher tensile strength and structural hardness. Xingyong can produce both according to your specifications.
Can you customize the solar module frame design and size?
Yes, absolutely. We have a professional mold design team and 14 extrusion lines. Whether you need a standard 30mm/35mm/40mm height or a completely unique custom solar frame profile for double-glass modules, we can open new molds for you. We also provide CNC machining services to punch holes, cut to length, and even laser mark your logo on the frame.
What surface treatments do you offer for aluminum PV frames?
Our most popular finish is Clear Anodized (Silver) with a thickness of 10-15μm, which offers great protection for 25+ years. We also specialize in Black Anodized frames for all-black aesthetic solar panels, ensuring a uniform, matte black color without fading. Sandblasting is standard to remove extrusion lines and provide a smooth, premium look.
How do you ensure the corner connection is strong and waterproof?
We use high-precision CNC cutting to ensure the 45-degree or 90-degree cuts are perfect. Our frames are designed to work with corner keys (L-keys), which are inserted into the frame cavity and crimped. This mechanical connection is extremely tight, preventing water ingress and ensuring the solar module frame stays rigid during transport and installation.
How do you pack solar frames to prevent damage during shipping?
We solve the common issue of scratched profiles. Each aluminum solar profile can be filmed individually. We then stack them on custom-sized wooden pallets with pearl cotton interlayers to separate layers. The entire pallet is wrapped in protective plastic and strapped securely. This reinforced packaging ensures your goods arrive in perfect condition, ready for your automated assembly lines.
