Stop Replacing Flimsy Extension Poles: The Industrial Reliability Gap
In the high-stakes world of industrial maintenance, a failed extension pole is more than a broken tool—it is a bottleneck in your operational workflow. Most procurement managers at major distributors or big-box retailers like Home Depot face a recurring nightmare: “commercial” poles that buckle under lateral load or locking mechanisms that seize after exposure to industrial cleaners. This cycle of frequent replacement erodes your margins and compromises worker safety.
At Xingyong, we don’t just “make” poles; we engineer aluminum extrusions. With 22 years of deep-sector experience and a monthly capacity of 3,000 tons, we’ve solved the structural fatigue issues that plague cheaper alternatives. By controlling the entire lifecycle—from the 6063-T5 billet extrusion to precision CNC machining—we deliver hardware that survives the rigors of 24/7 industrial environments.
What Defines a High-Performance Industrial Aluminum Telescopic Pole?
An industrial-grade aluminum telescopic pole must utilize 6063-T5 high-purity aluminum alloy with a minimum wall thickness of 1.2mm to 1.8mm to ensure structural rigidity and “zero-wobble” extension. Unlike retail-grade poles, these tools are built to withstand vertical compression loads exceeding 45kg and maintain corrosion resistance through a 15μm minimum anodized layer.
To qualify for heavy-duty maintenance, the hardware must satisfy these engineering benchmarks:
- Alloy Integrity: Use of virgin 6063-series aluminum to prevent the intergranular corrosion common in recycled scrap.
- Mechanical Hardness: Achieving 12-15 Webster Hardness (HW) through precise aging oven protocols.
- Dimensional Tolerance: Maintaining a concentricity of ±0.05mm between telescoping segments to ensure smooth operation without lateral play.
Technical Comparison: Maintenance Grade vs. Retail Grade
| Technical Specification | Standard Retail Pole | Xingyong Industrial Pole | B2B Profit Impact |
|---|---|---|---|
| Material Base | 6061-T4 (Recycled) | 6063-T5 (Virgin Billet) | Lower fatigue/replacement rate |
| Average Wall Thickness | 0.6mm – 0.8mm | 1.2mm – 1.8mm | 3x Higher lateral strength |
| Max Vertical Load | < 18 kg | > 50 kg | Safety compliance (OSHA/ISO) |
| Surface Treatment | Powder Coating (< 8μm) | Anodized (12μm – 18μm) | Chemical & UV resistance |
| Locking Cycle Life | 800 – 1,200 Uses | 8,000 – 10,000+ Uses | Drastic reduction in TCO |
The Physics of 6063-T5: Why Extrusion Pressure Matters

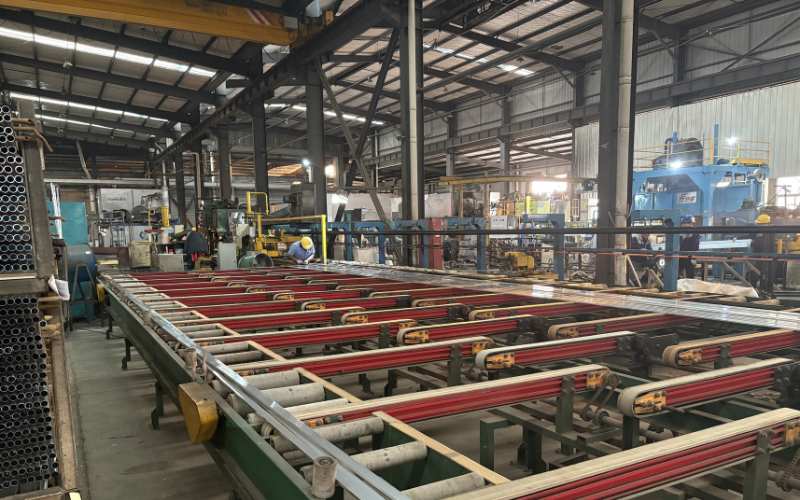

I’ve spent thousands of hours in our extrusion workshop, and I’ve seen how many factories cut corners by using undersized presses. At Xingyong, we utilize 14 advanced extrusion lines, including 1400T and 2000T units.

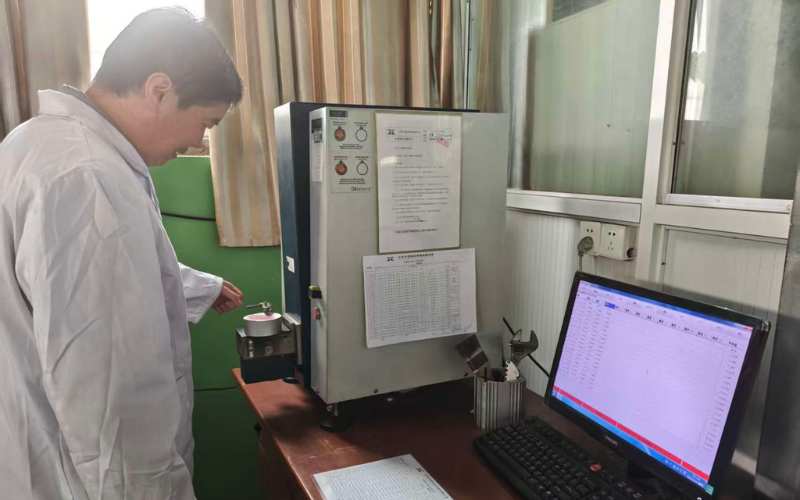

Why does this matter to a buyer? A higher-tonnage press allows us to extrude thicker walls with a more refined grain structure. When we produce our heavy-duty telescopic poles, the metal is forced through the die at a density that prevents the “banana effect”—that frustrating permanent bend that happens when a 20ft pole is fully extended. We verify this consistency using Oxford Spectrometers and Israel-made Romidot scanners to ensure the profile matches your CAD drawings exactly.
Locking Mechanisms: Engineering for High-Torque Environments
The locking system is the primary failure point in industrial maintenance. When a worker is using a pole for high-reach window cleaning or solar panel maintenance, they apply significant torque.
- External Flip-Locks: We’ve reinforced our flip-locks with glass-filled nylon. Unlike the cheap PVC used by competitors, our locks won’t crack in sub-zero temperatures or soften in 40°C heat.
- Internal Cam Locks: Our cams are CNC-machined to ensure 360-degree contact with the inner tube. This prevents “slippage” under vertical pressure, a critical safety feature for industrial maintenance tools.
- Smooth-Action Telescoping: By using internal HDPE bushings, we eliminate metal-on-metal friction, preventing the aluminum “shavings” that eventually jam cheaper poles.
Engineer’s Insight: I once consulted for a distributor whose poles were failing in coastal resorts. The culprit wasn’t the lock—it was filiform corrosion under the surface. We solved this by increasing our anodization bath time to reach 15μm, exceeding ISO 7599 standards.

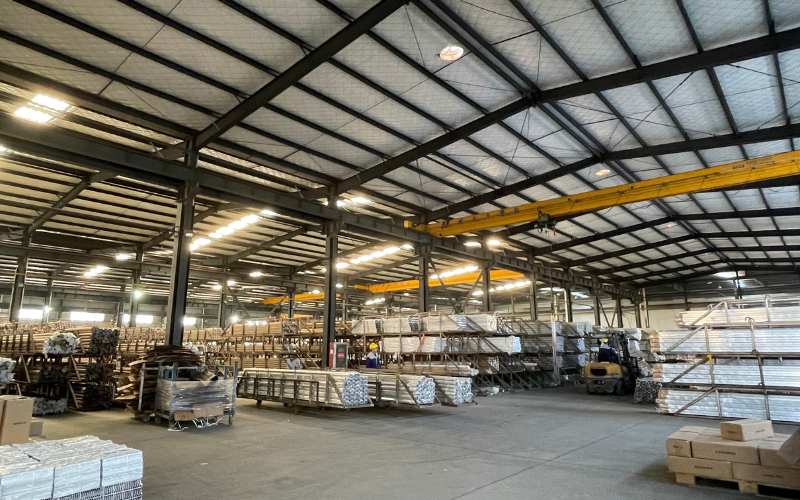

Distributor Advantage: Lead Times, Capacity, and Logistics
For a Supply Chain Manager at a company like Walmart or Ross, a 20% lower price is meaningless if the factory can’t deliver 50,000 units by the peak season.
- Massive Scale: Our 3000-ton monthly output means we can absorb large “flash orders” without pushing back your existing lead times.
- Compliance-Ready: We carry IATF 16949:2016 and ISO 9001:2015 certifications. This isn’t just paperwork; it’s your guarantee that every pole in a 5,000-unit shipment is identical to the sample.
- OEM/ODM Flexibility: Whether you need custom branding, laser-marked measuring scales, or specific pool cover reel attachments, our in-house CNC and finishing shops handle it under one roof.
Quality Control Without Compromise
Before any shipment leaves our facility, it passes through our integrated detection center. We simulate “worst-case” industrial scenarios:
- Salt Spray Testing: Validating finish durability for chemical plant environments.
- Cycle Testing: Automated machines extend and retract the poles thousands of times to ensure lock longevity.

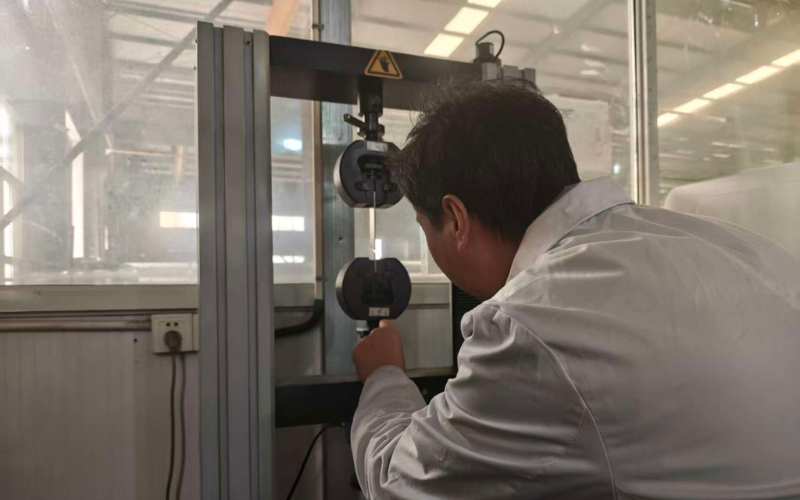

- Tensile Strength Analysis: Using Universal Testing Machines to confirm the 6063-T5 alloy meets the required ASTM B221 specifications.
Future-Proof Your Maintenance Inventory
Selecting a manufacturing partner for aluminum telescopic poles is a decision that impacts your brand’s reputation and your end-users’ productivity. You need a factory that speaks the language of tolerances, alloys, and social audits.
As an engineer-led organization, Xingyong provides the technical transparency and manufacturing muscle required to dominate the industrial hardware market. Don’t settle for “retail grade” when your reputation depends on industrial strength.
Expert Procurement Consultation
Strategic Supply Chain Solutions
Are you looking to optimize your SKU lineup or develop a proprietary telescopic system? Our engineering team provides full-spectrum support—from material selection to logistical optimization. Contact Xingyong today for a technical deep-dive and a factory-direct quotation that aligns with your volume requirements.
